Brushless Brush PMDC Micro Electric DC Motor 2700 Rpm 580 DC 13.5V Customized

Place of Origin China
Certification ISO9001、ISO14001、IATF16949、ROHS、REACH
Model Number JRC3042
Minimum Order Quantity 10000PCS
Price USD0.60 1000PCS
Packaging Details Carton with foam pad
Delivery Time 25 working days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name TCS Precision Voltage DC 13.5V (can Be Customized In 1V To 24V)
Warranty 3months-1year Speed(RPM) 2700 Rpm At No-load
Current 0.022 A At No-load Product Name Brush Dc Electric Motor
Usage Car, Electric Bicycle, FAN, Home Appliance, SMART HOME Torque 330 G.cm At Stall
High Light

Brushless Micro Electric DC Motor

,

DC 13.5V Micro Electric DC Motor

,

2700 Rpm PMDC Electric Motor

Leave a Message
Product Description

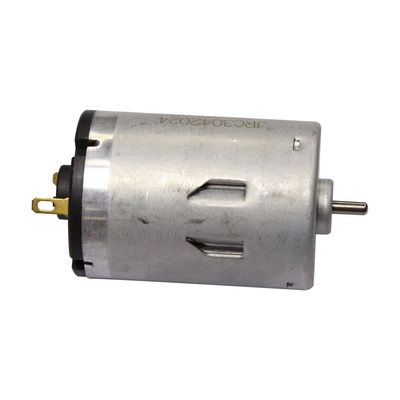

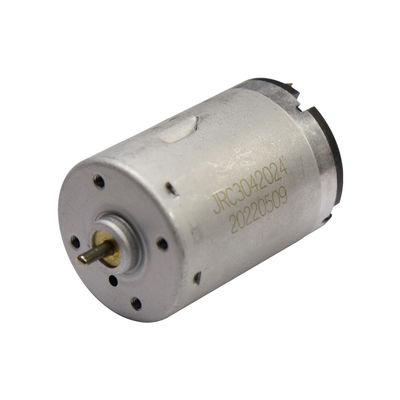

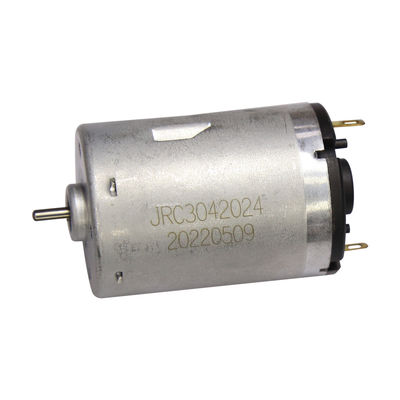

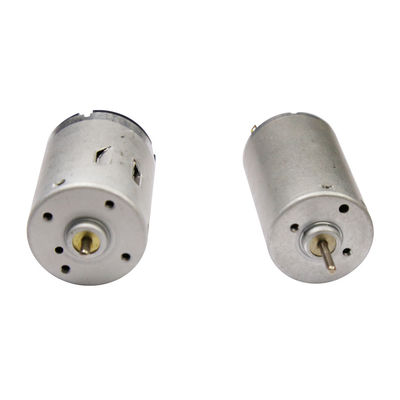

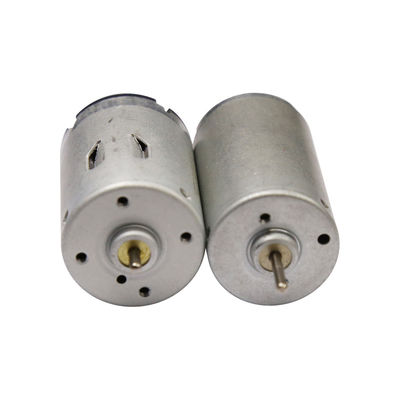

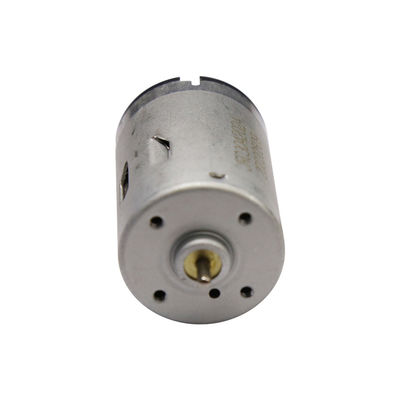

580 DC 13.5 V 2700 Rpm PMDC Micro Electric Brush Brushless DC Motor Customized

Quick Detail:

  • Various scopes of application: Medical devices, washing machine, etc.
  • Usage: Car, Electric bicycle, etc.
  • MOQ: 10000pcs
  • REACH,ROHS,ISO9001,ISO14001
  • 1 year warranty

Description:

Micro motor, also known as "micro motor", refers to a motor with a diameter less than 160mm or a rated power less than 750mW. Micromotors are commonly used in control systems or transmission of mechanical loads to achieve functions such as detecting, analyzing, amplifying, executing, or converting electromechanical signals or energy.



Specifications:

item
value
Warranty
3months-1year
Place of Origin
China

Guangdong
Brand Name
TCS Precision
Model Number
JRC3042
Usage
Car, Electric Bicycle, FAN, Home Appliance, SMART HOME
Type
Micro Motor
Torque
330 g.cm at stall
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Speed(RPM)
2700 rpm at No-load
Continuous Current(A)
0.96 A at stall
Efficiency
IE 1
Model
JRC3042
Voltage
13.5v (can be customized in 1 V to 24V)
Current
0.022 A at No-load
Outline Dimension
42.5 mm
Lifetime
More than 500H(continuous operation)
Rotation
CCW/CW reversible
Product Name
Brush Dc Electric Motor
Customized accept
Yes
Model: JRC3042
Voltage
No-load
Maximum Efficiency Point
Stall
Range volt.
Rated volt.
Speed
(RPM)
Current (A)
Speed(RPM)
Current (A)
Torgue
(g.cm)
Power
(W)
Torgue
(g.cm)
Current
(A)
9~16V
13.5V
2700
0.022
2322
0.153
46.2
1.1
330
0.96

Brushless Brush PMDC Micro Electric DC Motor 2700 Rpm 580 DC 13.5V Customized 0

Brushless Brush PMDC Micro Electric DC Motor 2700 Rpm 580 DC 13.5V Customized 1

Applications:





Brushless Brush PMDC Micro Electric DC Motor 2700 Rpm 580 DC 13.5V Customized 2









FAQ:



Q1. Can I have a sample order for micro motors?

A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparing ,20-25working days for mass production.



Q3. Do you have any MOQ limit for micro motors order?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for micro motors?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send new air pump with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
