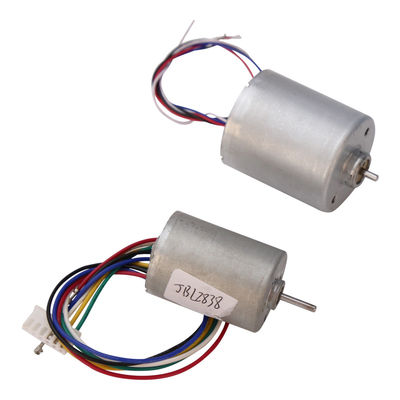

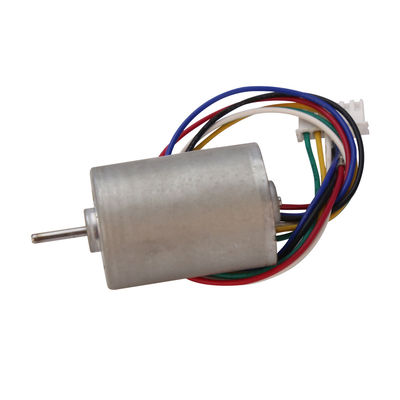

DC 14.4V Mini Micro DC Motor 6600 Rpm Electric Miniature Brushless DC Motor

Place of Origin China
Brand Name TCS
Certification ISO9001、ISO14001、IATF16949、ROHS、REACH
Model Number JBL2838010
Minimum Order Quantity 10000PCS
Price Negotiate
Packaging Details Carton with foam pad
Delivery Time 25 working days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Voltage DC 14.4V (can Be Customized In 3V To 124V) Voltage Range DC 12.0 To 16.0V
No Load Speed 6600±10% Rpm No Load Curren ≤400mA
Rated Load 180gf·cm Usage Car, Electric Bicycle, FAN, Home Appliance, SMART HOME
Brand Name TCS Precision Place Of Origin Guangdong, China
High Light

DC 14.4V Micro DC Motor


6600 Rpm Micro DC Motor


Electric Miniature Brushless DC Motor

Leave a Message
Product Description

DC 14.4V Mini Brushless DC Motor 6600 Rpm Miniature Electric Motors

Quick Detail:

  • Place of origin: Guangdong, China
  • Package: Carton with foam pad
  • Lifetime: more than 500H(continuous operation)
  • REACH,ROHS,ISO9001,ISO14001
  • 1 year warranty



PWM speed control:

The input voltage of PWM control is 0-5V,the frequency is 10-30KHz,and the duty cycle is proportional(the speed is 0 at 0%,and the speed is maximum at 100%).
Life Acceptance:
No load speed varies within ±30%RPM from the initial.No load current varies within +30% from the initial.
Withstand Vibration Test:
Smallest packaging subjected to 2mm amplitude &(1000/60)Hz vibration for 30min each Up-Down, Left-Right & Back-Front.



Place of Origin
Brand Name
TCS Precision
Model Number
Car, Electric Bicycle, FAN, Home Appliance, SMART HOME
Micro Motor
Rated Load Speed
5800±10% rpm
Permanent Magnet
Protect Feature
Totally Enclosed
Starting Voltage
12V DC
Rotation Direction
Over current protection
Outline Dimension
More than 500H(continuous operation)
CCW/CW reversible
Product Name
Brushless Dc Electric Motor
Customized accept





DC 14.4V Mini Micro DC Motor 6600 Rpm Electric Miniature Brushless DC Motor 0





DC 14.4V Mini Micro DC Motor 6600 Rpm Electric Miniature Brushless DC Motor 1



Q1. Can I have a sample order for micro motors?

A: Yes, we welcome sample order to test and check quality.


Q2. What about the lead time?

A: 3-5 days for Sample preparing ,20-25working days for mass production.


Q3. Do you have any MOQ limit for micro motors order?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.


Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.


Q5. How to proceed an order for micro motors?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.


Q6. What are the terms of trade?



Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.


Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.


Secondly, during the guarantee period, we will send new air pump with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
