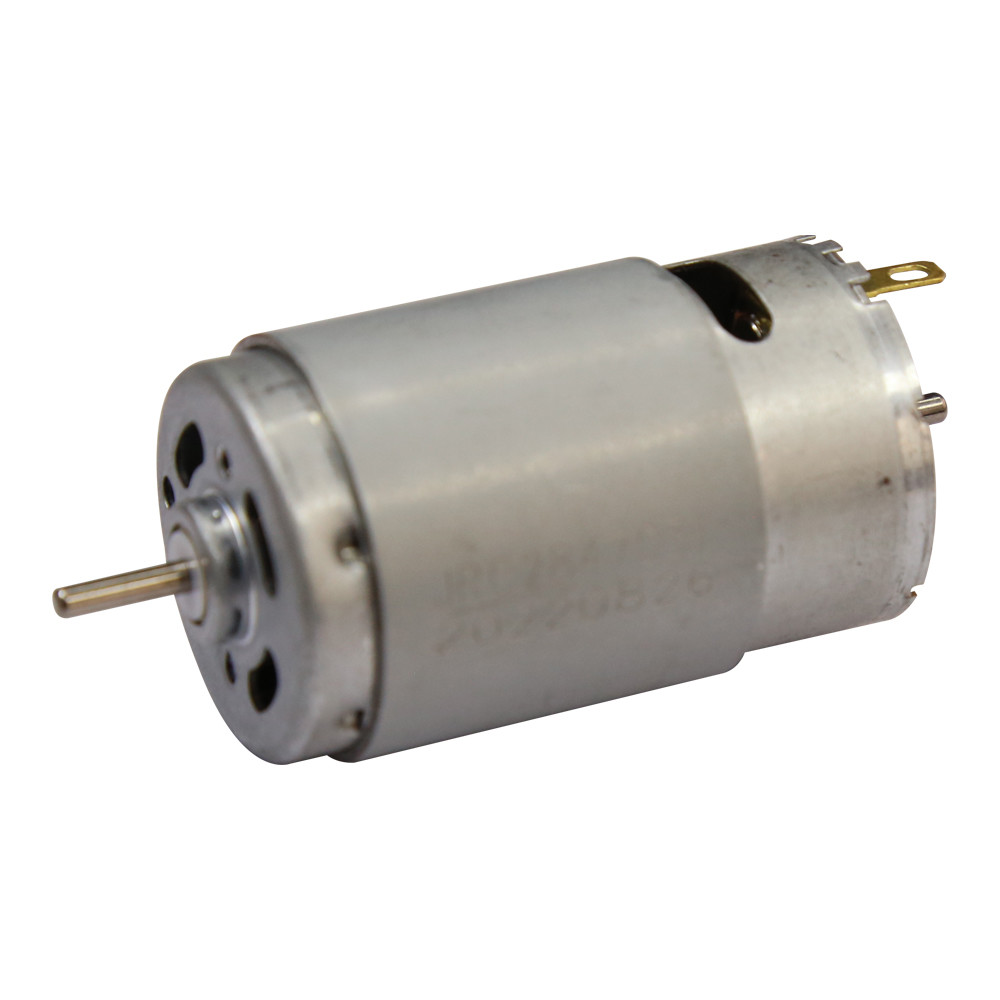

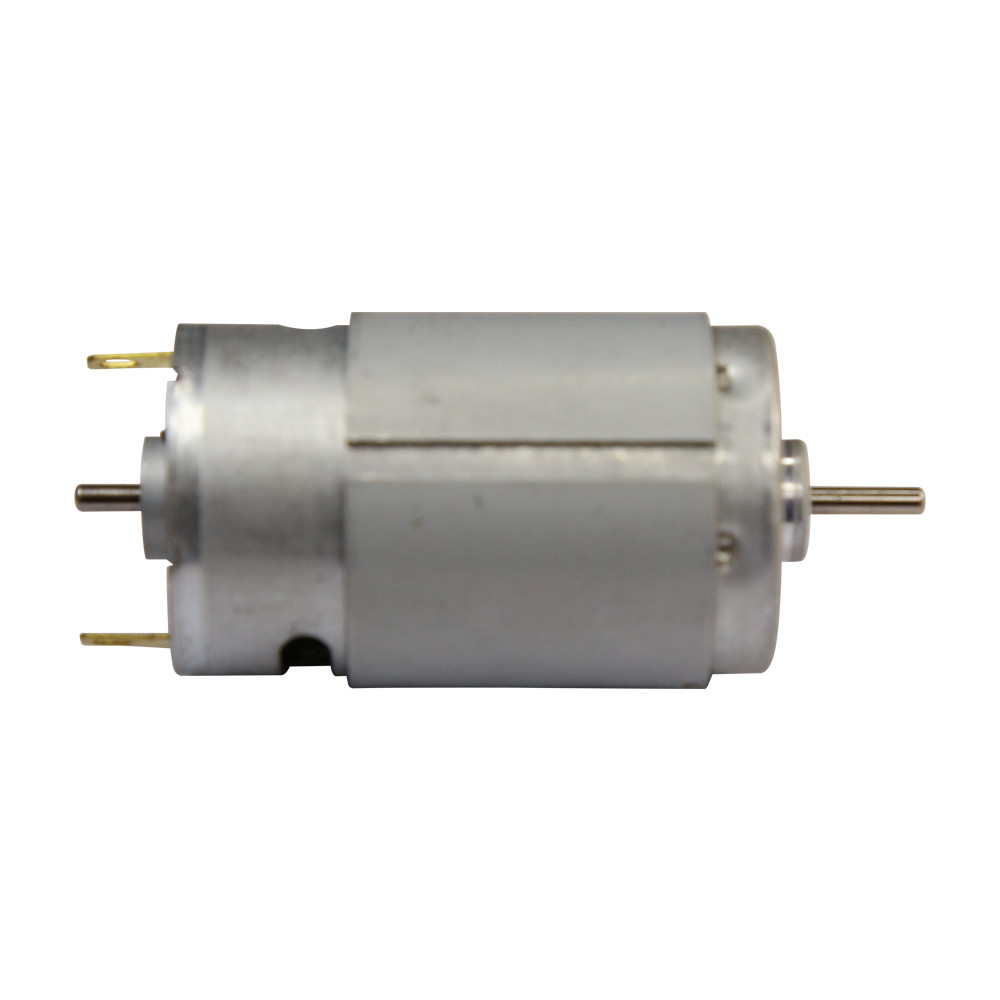

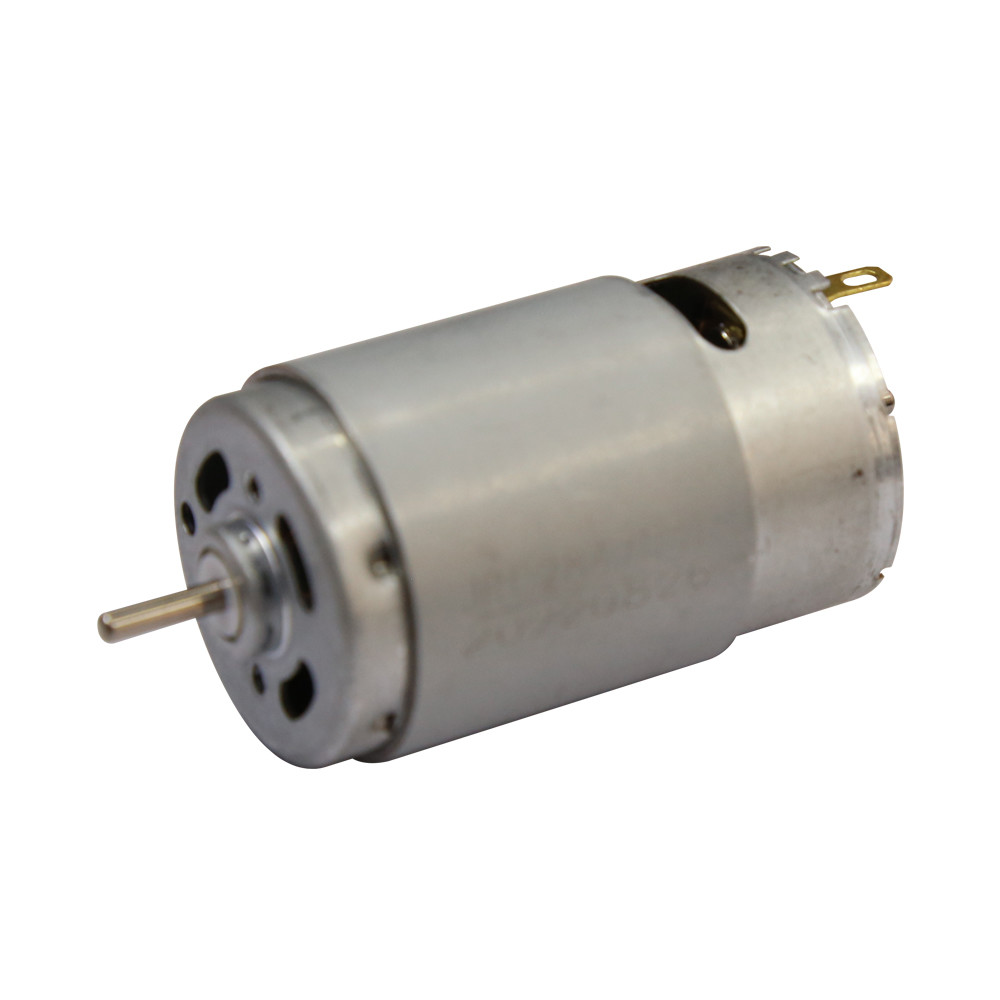

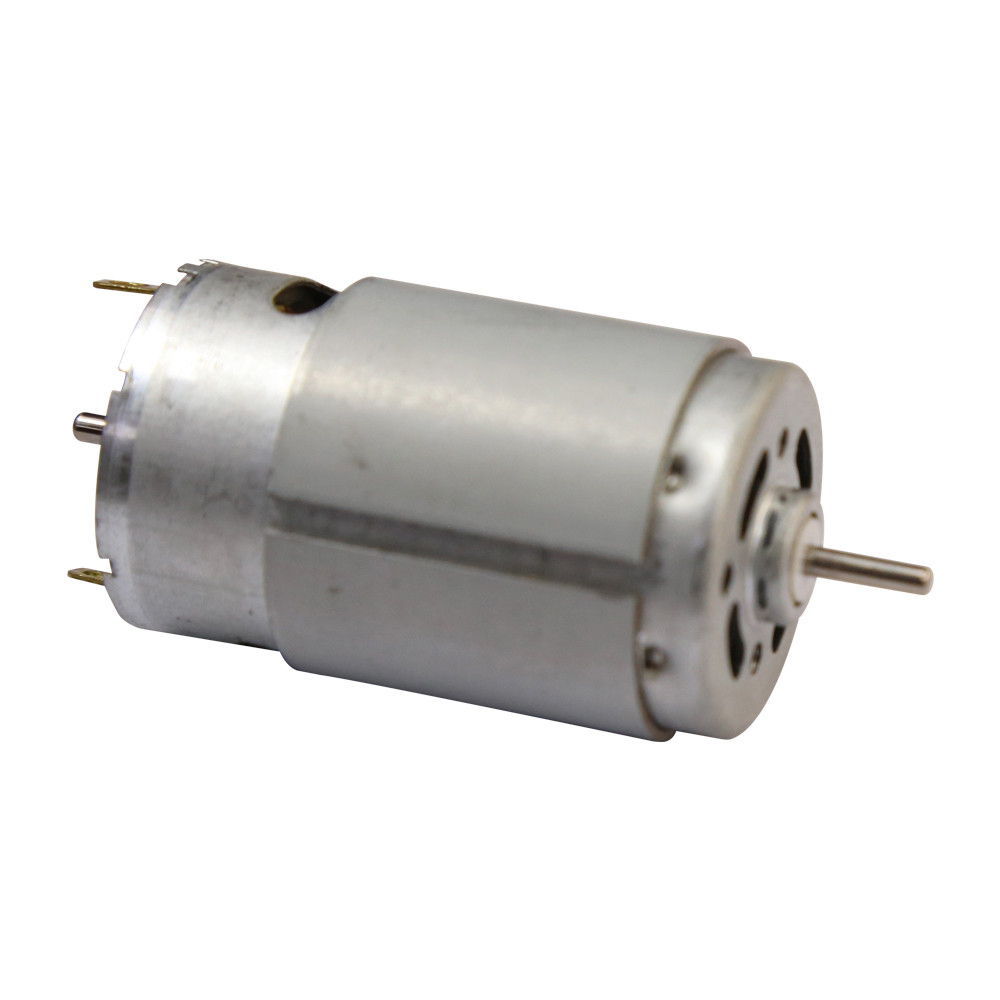

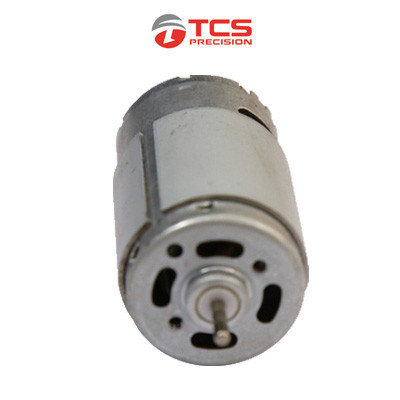

PMDC 390 12V Micro Mini DC Motor 6500 Rpm Brush Brushless Customized

  • PMDC 390 12V Micro Mini DC Motor 6500 Rpm Brush Brushless Customized
  • PMDC 390 12V Micro Mini DC Motor 6500 Rpm Brush Brushless Customized
  • PMDC 390 12V Micro Mini DC Motor 6500 Rpm Brush Brushless Customized
  • PMDC 390 12V Micro Mini DC Motor 6500 Rpm Brush Brushless Customized
  • PMDC 390 12V Micro Mini DC Motor 6500 Rpm Brush Brushless Customized
Place of Origin China
Brand Name TCS
Certification ISO9001、ISO14001、IATF16949、ROHS、REACH
Model Number JRC2847
Minimum Order Quantity 10000PCS
Price USD0.60 1000PCS
Packaging Details Carton with foam pad
Delivery Time 25 working days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage DC 12V Warranty 3months-1year
Speed(RPM) 6500 Rpm At No-load Current 0.102 A At No-load
Supply Ability 10000 Piece/Pieces Per Month Efficiency IE 1
Commutation Brush Torque 363 G.cm At Stall
High Light

PMDC Micro Mini DC Motor

,

390 Micro Mini DC Motor

,

6500 Rpm 12V Micro Motor
Leave a Message
Product Description

390 DC 12 V 6500 Rpm PMDC Micro Electric Brush Brushless DC Motor Customized

Quick Detail:

  • Scope of application: Vending machine, robot, automobile, beauty equipment, etc.
  • Shipment: FedEx, DHL, UPS, TNT
  • MOQ: 10000pcs
  • REACH,ROHS,ISO9001,ISO14001
  • 1 year warranty

Description:

The speed of a micromotor:

No load speed: The speed of the motor at rated voltage without load.

Load speed: The speed of the motor at rated voltage and rated load.

The speed characteristic curve of this motor can be determined by the two point method based on the no-load speed and load speed.

Usually, customers need to use both load speed and no-load speed.





Specifications:

item
value
Warranty
3months-1year
Place of Origin
China

Guangdong
Brand Name
TCS Precision
Model Number
JRC2847
Usage
Car, Electric Bicycle, FAN, Home Appliance, SMART HOME
Type
Micro Motor
Torque
363 g.cm at stall
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Speed(RPM)
6500 rpm at No-load
Continuous Current(A)
3.01 A at stall
Efficiency
IE 1
Model
JFB2847
Voltage
12 v
Current
0.102 A at No-load
Outline Dimension
62 mm
Lifetime
More than 500H(continuous operation)
Rotation
CCW/CW reversible
Product Name
Brush Dc Electric Motor
Customized accept
Yes
Model: JRC2847
Voltage
No-load
Maximum Efficiency Point
Stall
Range volt.
Rated volt.
Speed
(RPM)
Current (A)
Speed(RPM)
Current (A)
Torgue
(g.cm)
Power
(W)
Torgue
(g.cm)
Current
(A)
9~14V
12V
6500
0.102
5460
0.567
58
3.25
363
3.01

PMDC 390 12V Micro Mini DC Motor 6500 Rpm Brush Brushless Customized 0

PMDC 390 12V Micro Mini DC Motor 6500 Rpm Brush Brushless Customized 1

Applications:





PMDC 390 12V Micro Mini DC Motor 6500 Rpm Brush Brushless Customized 2









FAQ:



Q1. Can I have a sample order for micro motors?

A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparing ,20-25working days for mass production.



Q3. Do you have any MOQ limit for micro motors order?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for micro motors?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send new air pump with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
