4500 Rpm Electric Micro Brushed DC Motor 500 DC 12V Brushless Motor Customized

Place of Origin China
Certification ISO9001、ISO14001、IATF16949、ROHS、REACH
Model Number JRC3219
Minimum Order Quantity 10000PCS
Price USD0.60 1000PCS
Packaging Details Carton with foam pad
Delivery Time 25 working days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand Name TCS Precision Voltage DC 12V (can Be Customized In 3V To 124V)
Warranty 3months-1year Speed(RPM) 4500 Rpm At No-load
Continuous Current(A) 0.457 A At Stall Type Micro Motor
Lifetime More Than 500H(continuous Operation) Torque 91 G.cm At Stall
High Light

Electric Micro Brushed DC Motor

,

4500 Rpm Micro Brushed DC Motor

,

Customized 12V Brushless Motor

Leave a Message
Product Description

580 DC 13.5 V 2700 Rpm PMDC Micro Electric Brush Brushless DC Motor Customized

Quick Detail:

  • Shipment: FedEx, EMS, UPS, DHL, TNT
  • Construction: Permanent magnet
  • Place of origin: Guangdong, China
  • REACH,ROHS,ISO9001,ISO14001
  • 1 year warranty

Description:

The Structural Principles of Micromotors

The micro vibration motor mainly used for mobile phones belongs to the DC brush motor. There is an eccentric wheel on the motor shaft. When the motor rotates, the center of mass of the eccentric wheel is not on the motor's center of rotation, causing the motor to continuously lose balance and vibrate due to inertia.



Specifications:

item
value
Warranty
3months-1year
Place of Origin
China

Guangdong
Brand Name
TCS Precision
Model Number
JRC3219
Usage
Car, Electric Bicycle, FAN, Home Appliance, SMART HOME
Type
Micro Motor
Torque
91 g.cm at stall
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Speed(RPM)
4500 rpm at No-load
Continuous Current(A)
0.457 A at stall
Efficiency
IE 1
Model
JRC3219
Voltage
12v (can be customized in 3 V to 124V)
Current
0.027 A at No-load
Outline Dimension
19.5mm
Lifetime
More than 500H(continuous operation)
Rotation
CCW/CW reversible
Product Name
Brush Dc Electric Motor
Customized accept
Yes



Model: JRC3219
Voltage
No-load
Maximum Efficiency Point
Stall
Range volt.
Rated volt.
Speed
(RPM)
Current (A)
Speed(RPM)
Current (A)
Torgue
(g.cm)
Power
(W)
Torgue
(g.cm)
Current
(A)
9~14V
12V
4500
0.027
3700
0.113
18.2
0.69
91
0.457

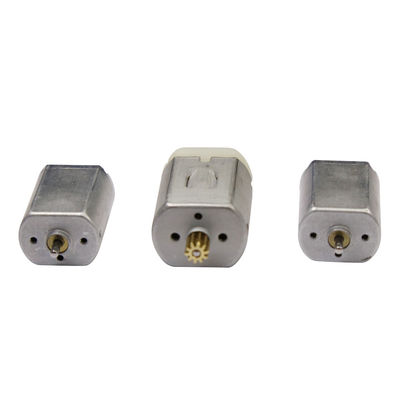

4500 Rpm Electric Micro Brushed DC Motor 500 DC 12V Brushless Motor Customized 0

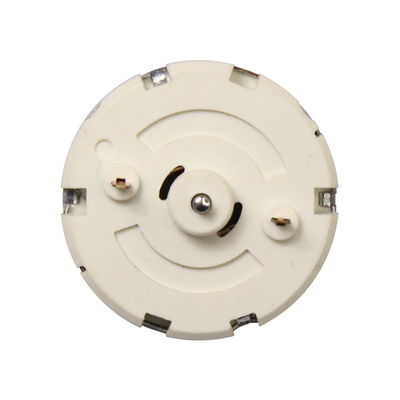

4500 Rpm Electric Micro Brushed DC Motor 500 DC 12V Brushless Motor Customized 1



Applications:

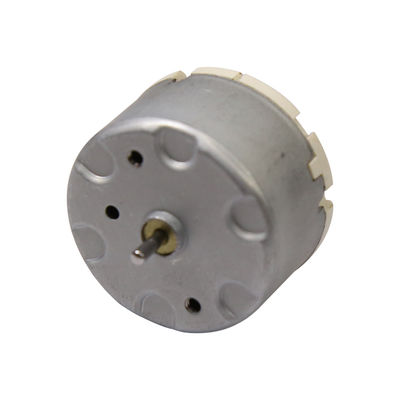

4500 Rpm Electric Micro Brushed DC Motor 500 DC 12V Brushless Motor Customized 2









FAQ:



Q1. Can I have a sample order for micro motors?

A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparing ,20-25working days for mass production.



Q3. Do you have any MOQ limit for micro motors order?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for micro motors?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send new air pump with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
