Customized Mini Brushless DC Motor 095 DC 13.5V 4350 Rpm Miniature Electric Motors

Place of Origin China
Brand Name TCS
Certification ISO9001、ISO14001、IATF16949、ROHS、REACH
Model Number JRC3031
Minimum Order Quantity 10000PCS
Price USD0.60 1000PCS
Packaging Details Carton with foam pad
Delivery Time 25 working days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage DC 13.5V (can Be Customized In 3V To 124V) Warranty 3months-1year
Speed(RPM) 4350 Rpm At No-load Current 0.053 A At No-load
Construction Permanent Magnet Usage Car, Electric Bicycle, FAN, Home Appliance, SMART HOME
Brand Name TCS Precision Place Of Origin Guangdong, China
High Light

Customized Mini Brushless DC Motor

,

DC 13.5V Mini Brushless DC Motor

,

4350 Rpm Miniature Electric Motors

Leave a Message
Product Description

095 DC 13.5 V 4350 Rpm Electric Brush Brushless DC Motor Customized For Home Appliances

Quick Detail:

  • Place of origin: Guangdong, China
  • Package: Carton with foam pad
  • Lifetime: more than 500H(continuous operation)
  • REACH,ROHS,ISO9001,ISO14001
  • 1 year warranty

Description:

Other parameters of micro motors:

Starting current: The current value of the motor at the moment when the rated voltage is connected.

Starting voltage: The minimum voltage value that can cause the motor spindle to rotate.

Motor temperature rise: The rate of temperature rise on the surface of a motor after operating at rated voltage for a certain period of time.

Axial clearance: The axial displacement (displacement) of the motor rotor inside the casing.

Starting torque: The maximum torque that a motor can drive at rated voltage.

Motor life: The time during which the motor operates with all indicators within the qualified range under rated voltage and load conditions



Specifications:

item
value
Warranty
3months-1year
Place of Origin
China

Guangdong
Brand Name
TCS Precision
Model Number
JRC3031
Usage
Car, Electric Bicycle, FAN, Home Appliance, SMART HOME
Type
Micro Motor
Torque
275 g.cm at stall
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Speed(RPM)
4350 rpm at No-load
Continuous Current(A)
1.29 A at stall
Efficiency
IE 1
Model
JFB3031
Voltage
13.5v (can be customized in 3 V to 124V)
Current
0.053 A at No-load
Outline Dimension
30.5mm
Lifetime
More than 500H(continuous operation)
Rotation
CCW/CW reversible
Product Name
Brush Dc Electric Motor
Customized accept
Yes
Model: JRC3031
Voltage
No-load
Maximum Efficiency Point
Stall
Range volt.
Rated volt.
Speed
(RPM)
Current (A)
Speed(RPM)
Current (A)
Torgue
(g.cm)
Power
(W)
Torgue
(g.cm)
Current
(A)
9~14V
13.5V
4350
0.053
3828
0.174
33
1.29
275
1.29

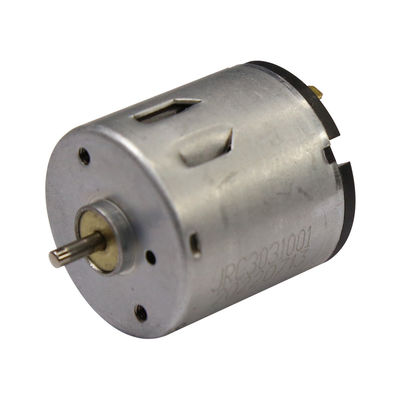

Customized Mini Brushless DC Motor 095 DC 13.5V 4350 Rpm Miniature Electric Motors 0

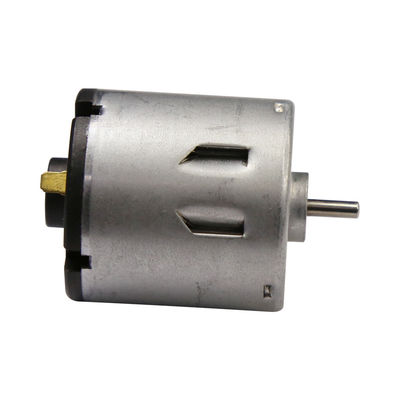

Customized Mini Brushless DC Motor 095 DC 13.5V 4350 Rpm Miniature Electric Motors 1

Applications:

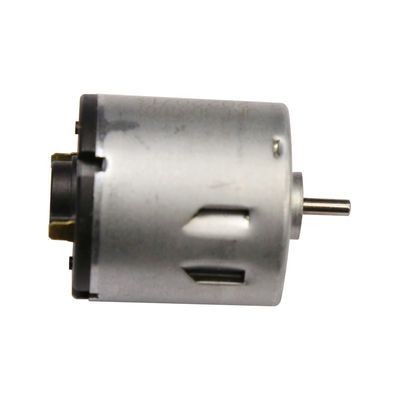

Customized Mini Brushless DC Motor 095 DC 13.5V 4350 Rpm Miniature Electric Motors 2









FAQ:



Q1. Can I have a sample order for micro motors?

A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparing ,20-25working days for mass production.



Q3. Do you have any MOQ limit for micro motors order?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for micro motors?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send new air pump with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
