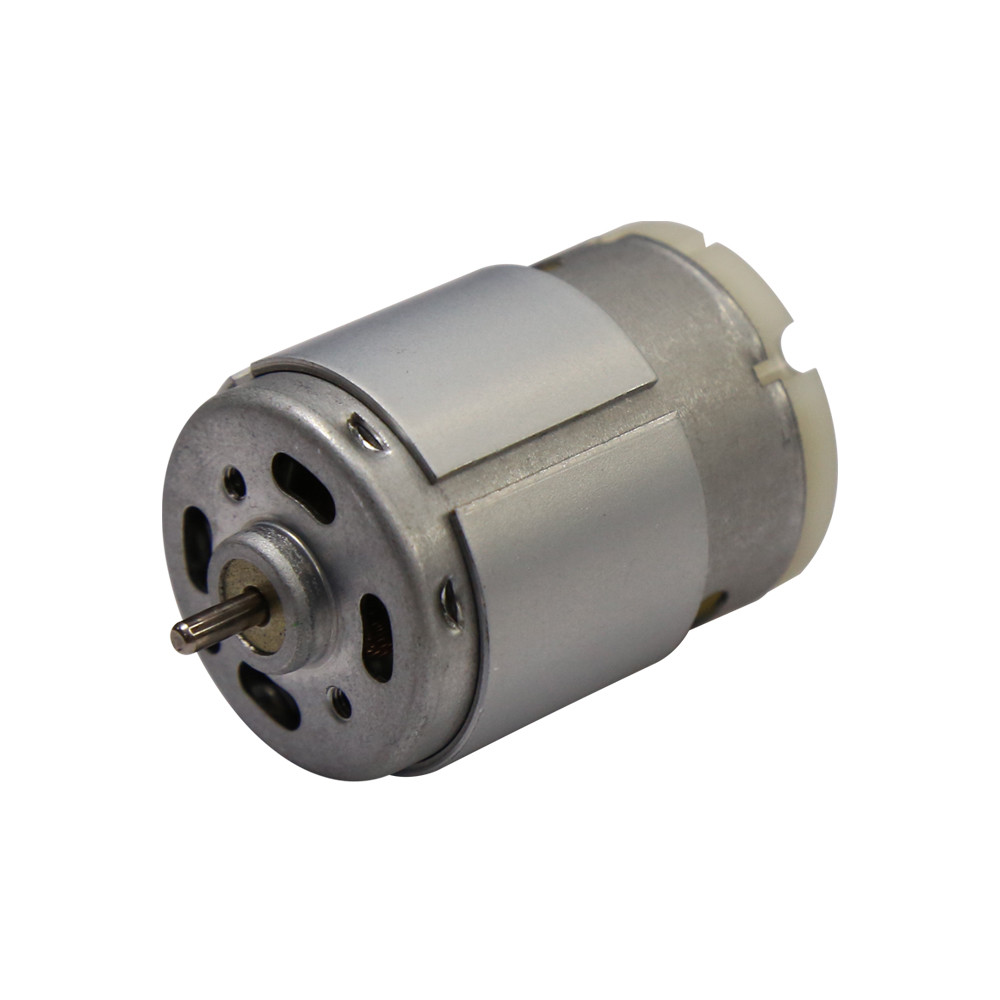

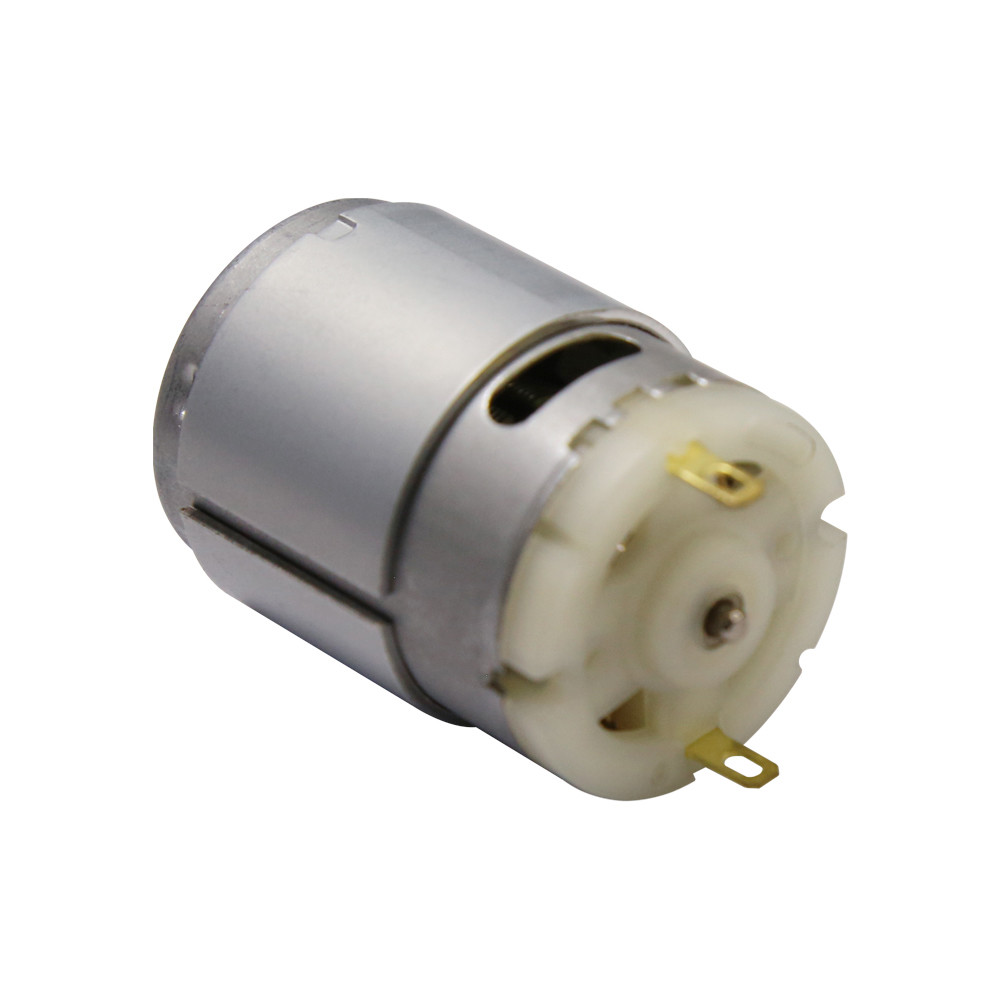

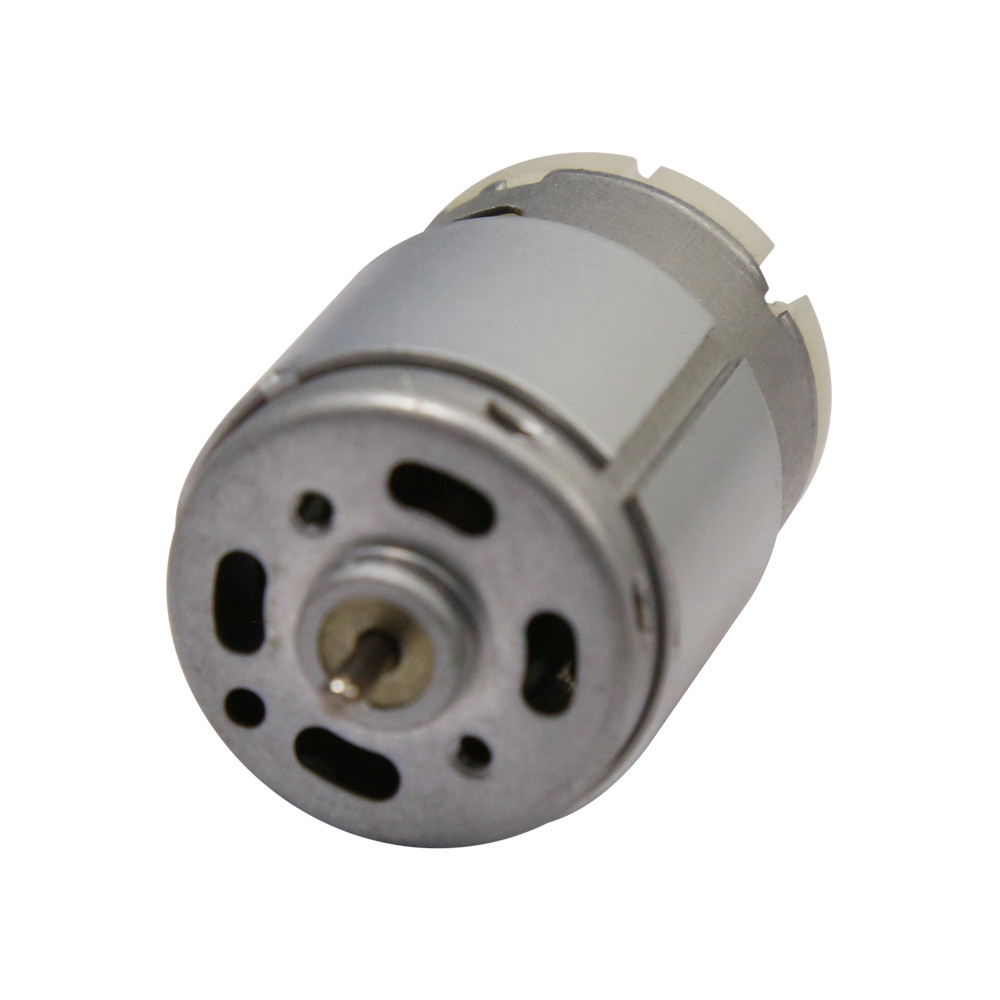

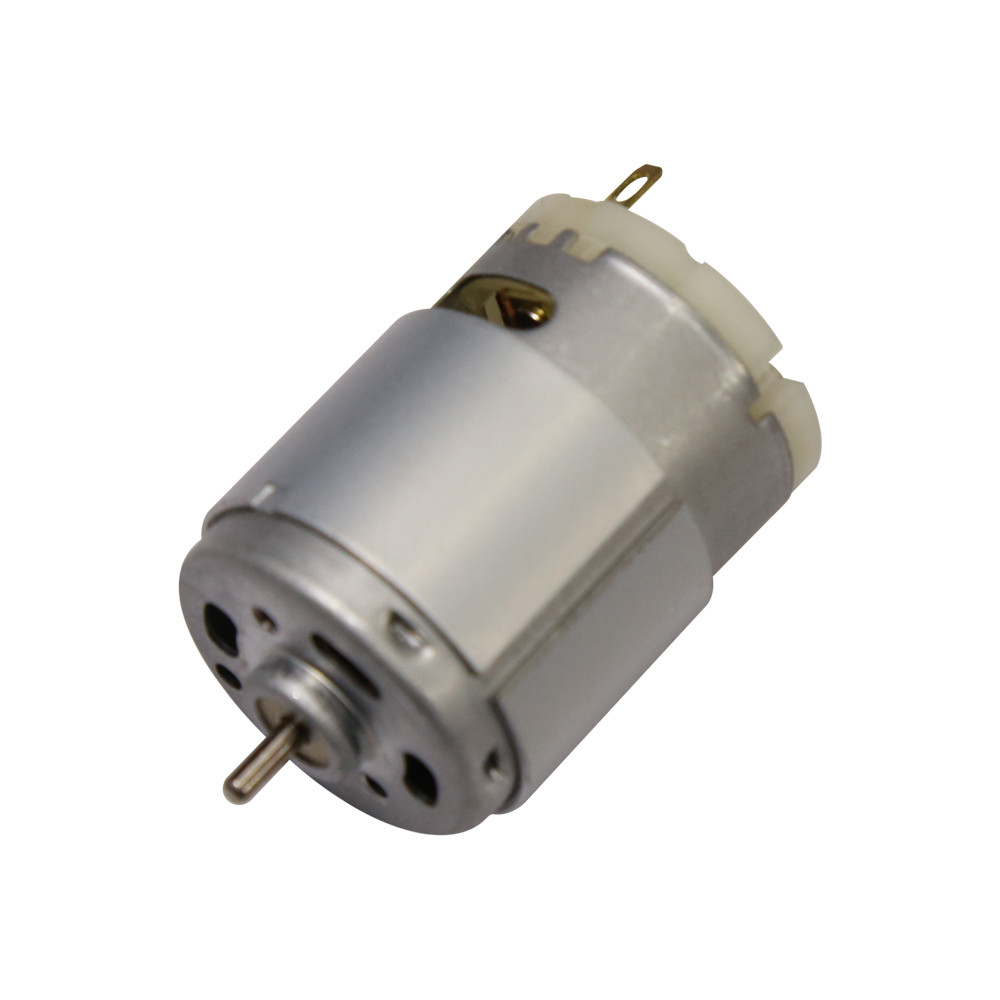

385 Micro Motor 12V DC Brush Brushless Electric 4800 Rpm - 5300 Rpm

Certification ISO9001、ISO14001、IATF16949、ROHS、REACH
Model Number JRC2838
Minimum Order Quantity 10000PCS
Price USD0.60 1000PCS
Packaging Details Carton with foam pad
Delivery Time 25 working days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Guangdong, China Brand Name TCS Precision
Voltage DC 12V (can Be Customized In 3V To 12V) Warranty 3months-1year
Speed(RPM) 4800~5300 Rpm At No-load Current 0.051A,0.07 A At No-load
Outline Dimension 38 Mm Lifetime More Than 500H(continuous Operation)
High Light

385 Micro Motor 12V DC

,

4800 Rpm Micro Motor 12V DC

,

5300 Rpm Brushless DC Electric Motor

Leave a Message
Product Description

365 DC 12 V 5100 Rpm PMDC Micro Electric Brush Brushless DC Motor Customized

Quick Detail:

  • Voltage: 12V(can be customized in 3V to 12V)
  • Outline dimension: 38mm
  • MOQ: 10000pcs
  • REACH,ROHS,ISO9001,ISO14001
  • 1 year warranty

Description:

Current of micro motors:

No-load current: The current consumed by the motor without load at rated voltage.

Load current: The current consumed by the motor under rated load at rated voltage.

Locked rotor current: The current consumed by the motor when it is locked at rated voltage (when the motor is energized but the spindle is locked).

The current characteristic curve of this motor can be determined by the two point method based on the no-load current and load current.

Usually, customers need to use load current and locked rotor current.





Specifications:

item
value
Warranty
3months-1year
Place of Origin
China

Guangdong
Brand Name
TCS Precision
Model Number
JRC2838
Usage
Car, Electric Bicycle, FAN, Home Appliance, SMART HOME
Type
Micro Motor
Torque
265 g.cm at stall
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Speed(RPM)
4800~5300 rpm at No-load
Continuous Current(A)
1.45A,1.58 A at stall
Efficiency
IE 1
Model
JFB2838
Voltage
12v (can be customized in 3 V to 12 V)
Current
0.051A,0.07 A at No-load
Outline Dimension
38 mm
Lifetime
More than 500H(continuous operation)
Rotation
CCW/CW reversible
Product Name
Brush Dc Electric Motor
Customized accept
Yes
Model: JRC2838
Voltage
No-load
Maximum Efficiency Point
Stall
Range volt.
Rated volt.
Speed
(RPM)
Current (A)
Speed(RPM)
Current (A)
Torgue
(g.cm)
Power
(W)
Torgue
(g.cm)
Current
(A)
9~16V
12V
4800
0.07
3936
0.318
4638
1.88
260
1.45
9~16V
12V
5300
0.051
4482
0.295
42.4
1.94
265
1.58

385 Micro Motor 12V DC Brush Brushless Electric 4800 Rpm - 5300 Rpm 0

385 Micro Motor 12V DC Brush Brushless Electric 4800 Rpm - 5300 Rpm 1

Applications:





385 Micro Motor 12V DC Brush Brushless Electric 4800 Rpm - 5300 Rpm 2









FAQ:



Q1. Can I have a sample order for micro motors?

A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparing ,20-25working days for mass production.



Q3. Do you have any MOQ limit for micro motors order?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for micro motors?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send new air pump with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
