12V PMDC Micro Electric DC Motor 5100 Rpm Brush Brushless Electric

Place of Origin China
Brand Name TCS
Certification ISO9001、ISO14001、IATF16949、ROHS、REACH
Model Number JRC2832
Minimum Order Quantity 10000PCS
Price USD0.60 1000PCS
Packaging Details Carton with foam pad
Delivery Time 25 working days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage DC 12V Warranty 3months-1year
Speed(RPM) 5100 Rpm At No-load Current 0.092 A At No-load
Customized Accept Yes Product Name Brush Dc Electric Motor
Construction Permanent Magnet Torque 91 G.cm At Stall
High Light

5100 Rpm Micro Electric DC Motor

,

PMDC Micro Electric DC Motor

,

Electric 12V Brushless DC Motor

Leave a Message
Product Description

365 DC 12 V 5100 Rpm PMDC Micro Electric Brush Brushless DC Motor Customized

Quick Detail:

  • Type: Micro motor
  • Package: Carton with foam pad
  • MOQ: 10000pcs
  • REACH,ROHS,ISO9001,ISO14001
  • 1 year warranty

Description:

Rated voltage of the motor:

The operation of the micromotor requires a rated voltage, and the corresponding varistor is selected according to the rated voltage (i.e. working voltage) required by the customer. If the varistor does not match the rated voltage of the motor, it will either fail or burn up. Moreover, the operating current and speed of the same motor vary under different operating voltages





Specifications:

item
value
Warranty
3months-1year
Place of Origin
China

Guangdong
Brand Name
TCS Precision
Model Number
JRC2832
Usage
Car, Electric Bicycle, FAN, Home Appliance, SMART HOME
Type
Micro Motor
Torque
91 g.cm at stall
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Speed(RPM)
5100 rpm at No-load
Continuous Current(A)
0.457 A at stall
Efficiency
IE 1
Model
JFB2832
Voltage
12 v
Current
0.092 A at No-load
Outline Dimension
32 mm
Lifetime
More than 500H(continuous operation)
Rotation
CCW/CW reversible
Product Name
Brush Dc Electric Motor
Customized accept
Yes

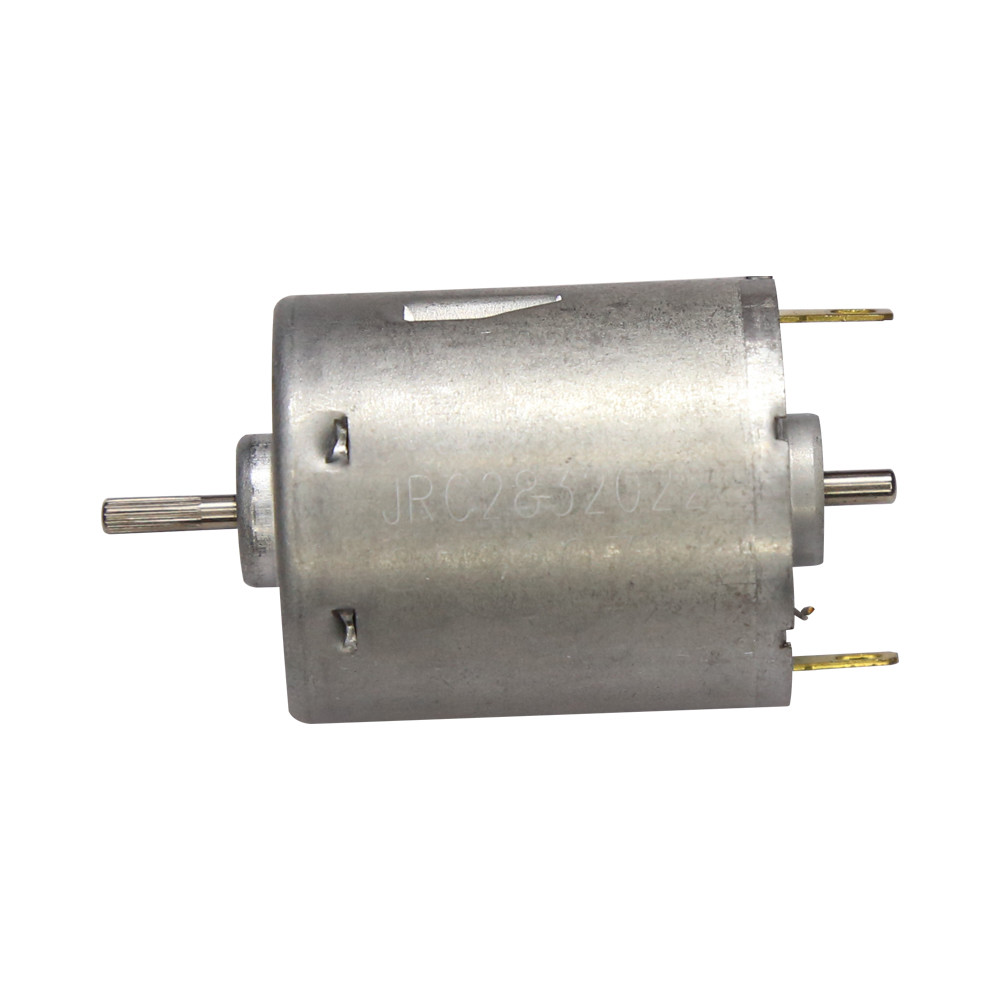

Model: JRC2832
Voltage
No-load
Maximum Efficiency Point
Stall
Range volt.
Rated volt.
Speed
(RPM)
Current (A)
Speed(RPM)
Current (A)
Torgue
(g.cm)
Power
(W)
Torgue
(g.cm)
Current
(A)
9~14V
12V
5100
0.092
3869
0.313
49.9
19
91
0.457

12V PMDC Micro Electric DC Motor 5100 Rpm Brush Brushless Electric 0

12V PMDC Micro Electric DC Motor 5100 Rpm Brush Brushless Electric 1

Applications:





12V PMDC Micro Electric DC Motor 5100 Rpm Brush Brushless Electric 2









FAQ:



Q1. Can I have a sample order for micro motors?

A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparing ,20-25working days for mass production.



Q3. Do you have any MOQ limit for micro motors order?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for micro motors?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send new air pump with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
