PMDC 6V Micro DC Motor 7100 Rpm Electric Brush Brushless Customized
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | DC 6V(can Be Customized In 1V To 6V) | Warranty | 3months-1year |
|---|---|---|---|
| Speed(RPM) | 7100 Rpm At No-load | Current | 0.033 A At No-load |
| Lifetime | More Than 500H(continuous Operation) | Product Name | Brush Dc Electric Motor |
| Customized Accept | Yes | Continuous Current(A) | 1.2 A At Stall |
| High Light | 6V Micro DC Motor,7100 Rpm Micro DC Motor,Customized PMDC Brushed Motor |
||
Product Description

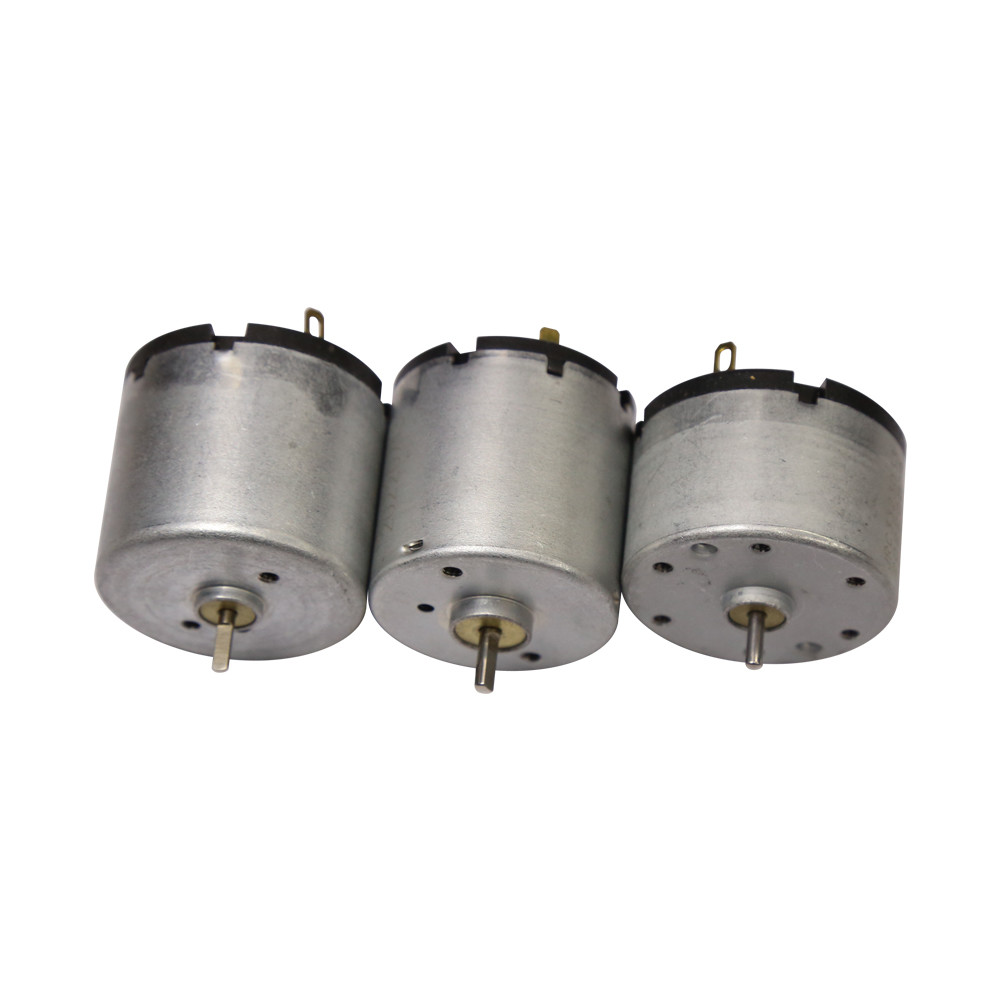

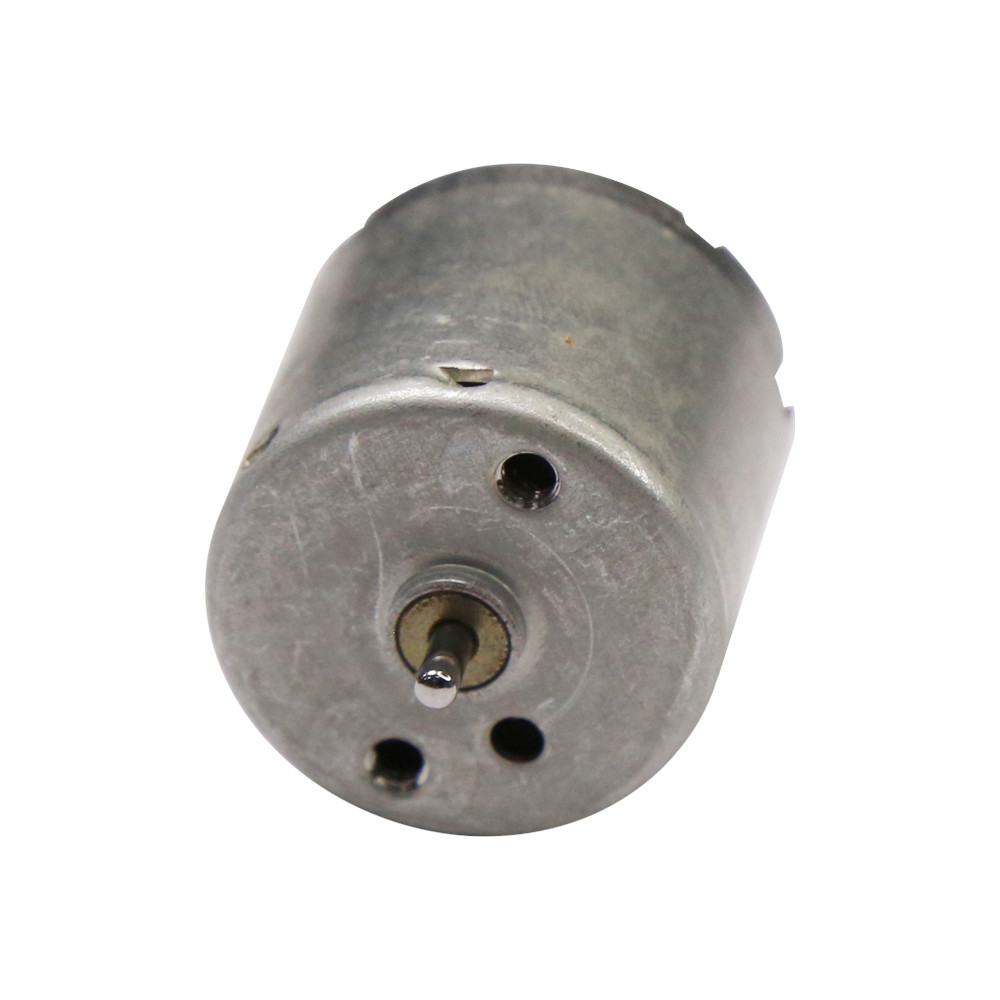

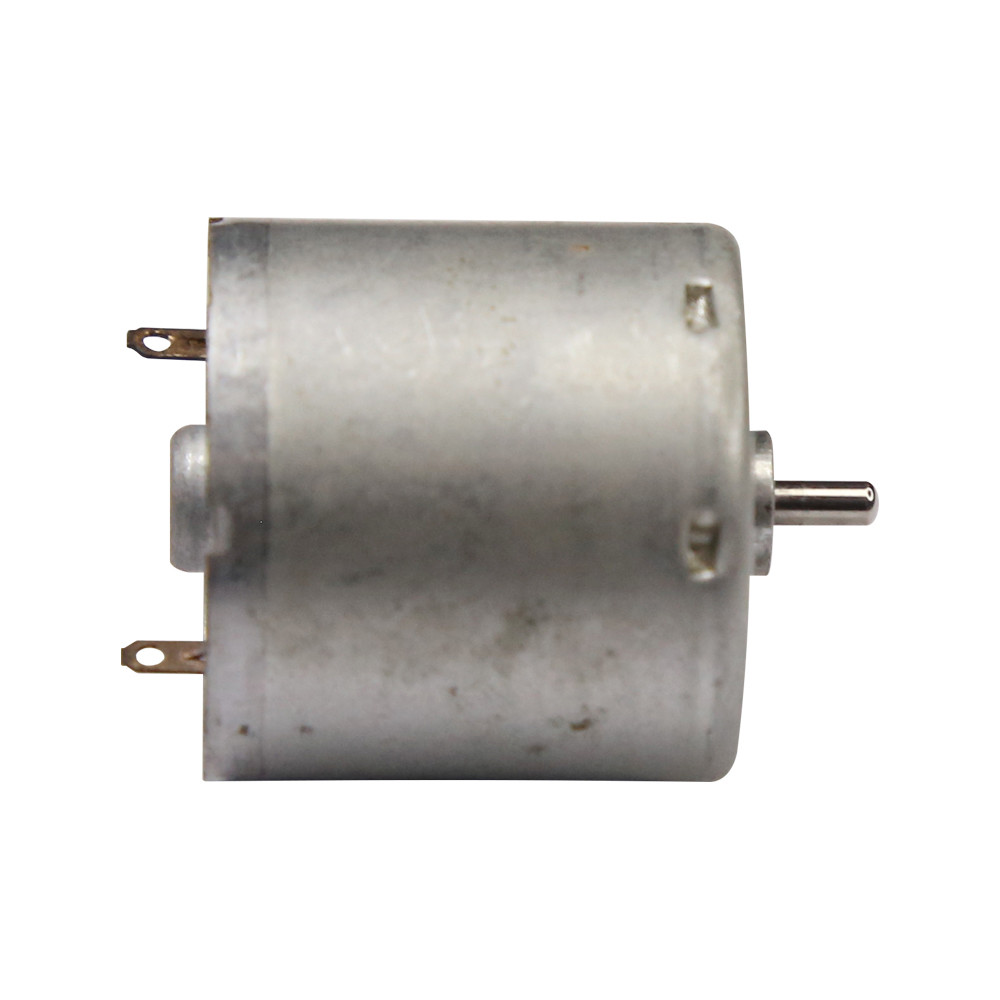

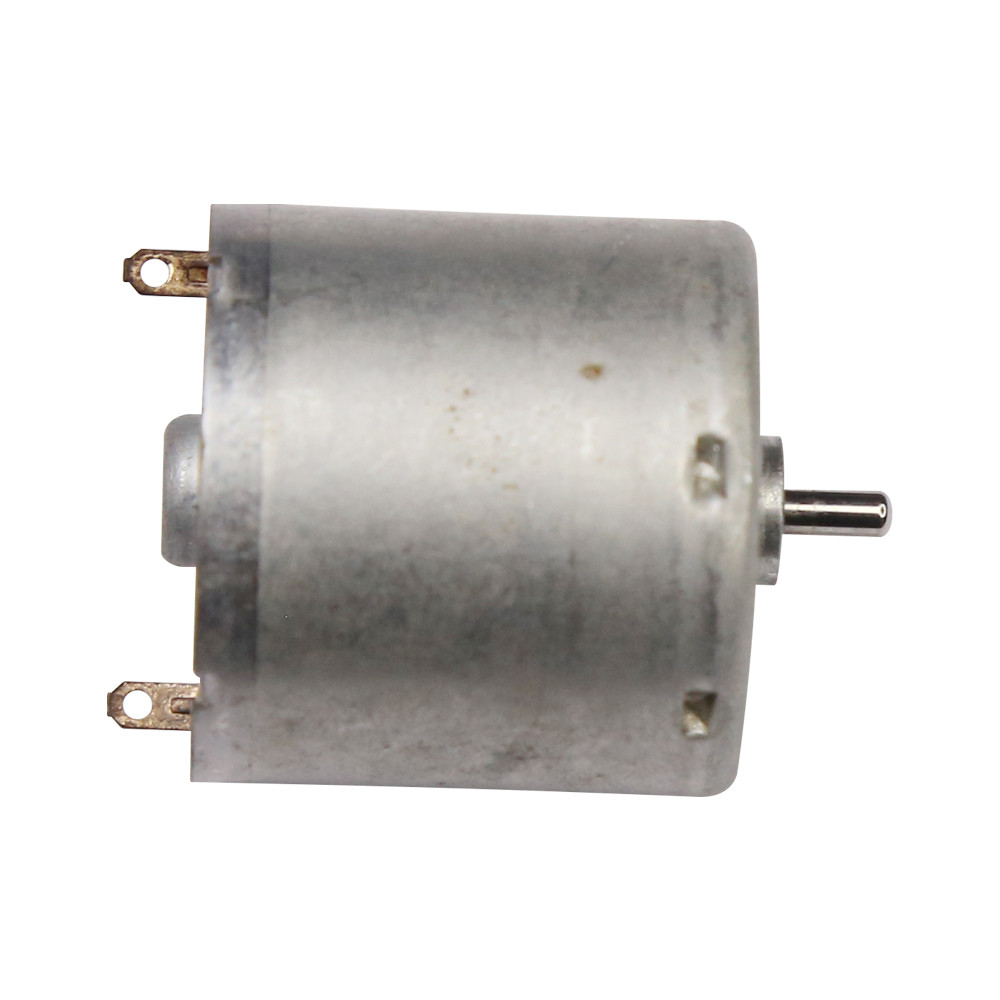

320 DC 6 V 7100 Rpm PMDC Micro Electric Brush Brushless DC Motor Customized
Quick Detail:
- Type: Micro motor
- Place of origin: Guangdong, China
- Brand Name: TCS Precision
- REACH,ROHS,ISO9001,ISO14001
- 1 year warranty
Description:
The motor end cover is basically composed of the following seven components:
1. Rivet: fixed brush holder;
2. Brush holder assembly: flows external current into the rotor;
3. Damping strip: reduces brush arm bounce;
4. Carbon crystal: Apply external current to the rotating rotor through a carbon brush;
5. Bearing: rotor rotation support;
6. Stop plate: isolates the contact between the rotating shaft and the metal plate, increasing service life;
7. End cover: a container for placing the above components.
Specifications:
Applications:
FAQ:
Q1. Can I have a sample order for micro motors?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,20-25working days for mass production.
Q3. Do you have any MOQ limit for micro motors order?
A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for micro motors?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. What are the terms of trade?
A: FOB, EXW
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new air pump with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
