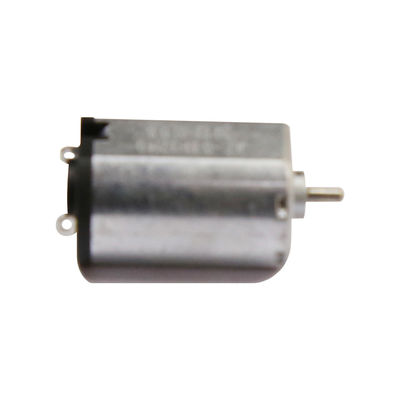

Electric Brush Brushless Micro DC Motor 032 DC 3V 11500 Rpm For Home Appliances

Place of Origin China
Brand Name TCS
Certification ISO9001、ISO14001、IATF16949、ROHS、REACH
Model Number JFB1418
Minimum Order Quantity 10000PCS
Price USD0.60 1000PCS
Packaging Details Carton with foam pad
Delivery Time 25 working days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage DC 3V Warranty 3months-1year
Torque 17 G.cm At Stall Construction Permanent Magnet
Outline Dimension 18mm Current 0.062 A At No-load
Product Name Brush Dc Electric Motor Model JFB1418
High Light

11500 Rpm Micro DC Motor

,

Home Appliances Micro DC Motor

,

Electric Brush Brushless Motor

Leave a Message
Product Description

032 DC 3V 11500 Rpm Electric Brush Brushless DC Motor Customized For Home Appliances

Quick Detail:

  • The current  is 0.062 A  at no-load
  • The continuous current is 0.76 A at stall
  • The torque is 17 g.cm at stall
  • REACH,ROHS,ISO9001,ISO14001
  • 1 year warranty

 Description:



The composition of Micromotors:

The motor is basically composed of three components: rotor, stator, and end cover.

Motor rotor: It is also a rotating component in the motor.

Motor stator: A component that provides support for the entire motor.

Motor end cover: provides a support for the motor brush.



Specifications:

item
value
Warranty
3months-1year
Place of Origin
China

Guangdong
Brand Name
TCS Precision
Model Number
JFB1418
Usage
Car, Electric Bicycle, FAN, Home Appliance, SMART HOME
Type
Micro Motor
Torque
17 g.cm at stall
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Speed(RPM)
11500 rpm at No-load
Continuous Current(A)
0.76 A at stall
Efficiency
IE 1
Model
JFB1418
Voltage
3 v (can be customized in 1 V to 3 V)
Current
0.062 A at No-load
Outline Dimension
18mm
Lifetime
More than 500H(continuous operation)
Rotation
CCW/CW reversible
Product Name
Brush Dc Electric Motor
Customized accept
Yes
Model: JFB1418
Voltage
No-load
Maximum Efficiency Point
Stall
Range volt.
Rated volt.
Speed
(RPM)
Current (A)
Speed(RPM)
Current (A)
Torgue
(g.cm)
Power
(W)
Torgue
(g.cm)
Current
(A)
2~4V
3V
11500
0.062
8990
0.215
3.74
0.33
17
0.76

Electric Brush Brushless Micro DC Motor 032 DC 3V 11500 Rpm For Home Appliances 0

Electric Brush Brushless Micro DC Motor 032 DC 3V 11500 Rpm For Home Appliances 1

Applications:





Electric Brush Brushless Micro DC Motor 032 DC 3V 11500 Rpm For Home Appliances 2









FAQ:



Q1. Can I have a sample order for micro motors?

A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparing ,20-25working days for mass production.



Q3. Do you have any MOQ limit for micro motors order?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for micro motors?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send new air pump with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
