20gf Linear Push Pull Solenoid Electromagnet Electric DC 9V For Safe Lock
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | DC9 V | Flow | 8~10V |
|---|---|---|---|
| Operation Temperature Range | -5 ~45ºC(Humidity To 30% To 85%RH) | Preservation Temperature Range | -20 ~60ºC(Humidity To 30% To 85%RH) |
| Rated Current | 0.6±10% A | Start Capability | ＞20gf |
| Application | Safe Lock/etc | Noise | <50DB (30 Away) |
| Revert | <1s | ||
| High Light | 20gf Push Pull Solenoid Electromagnet,Safe Lock Push Pull Solenoid Electromagnet,Electric Push Pull Linear Solenoid |
||
Product Description

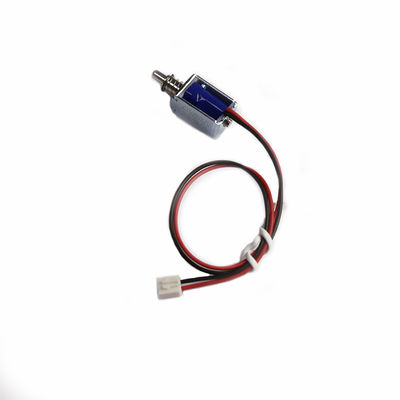

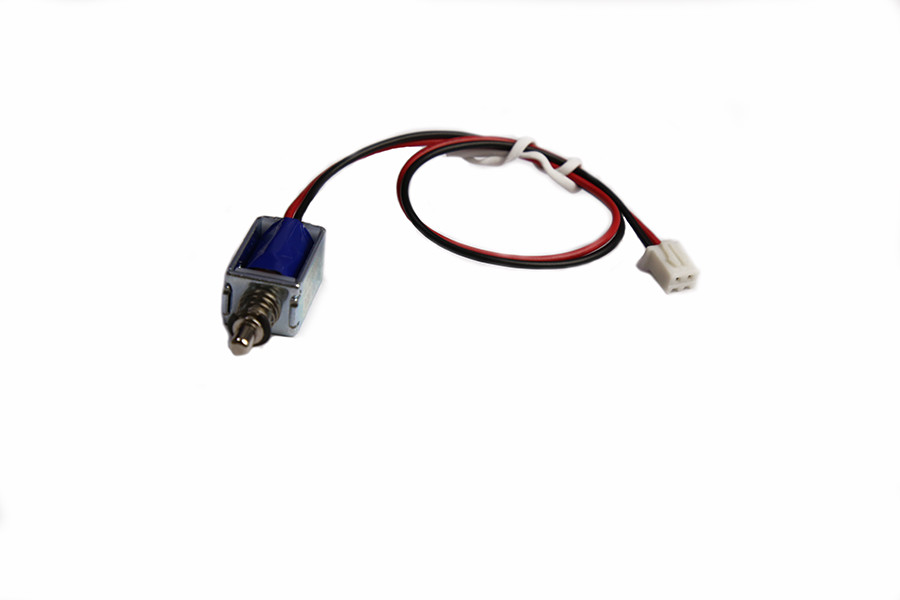

Solenoid Electromagnet 20gf Electric Linear Solenoid
Quick Detail:
- The interior consists of a spiral coil
- -5 ~45ºC(Humidity to 30% to 85%RH)
- DC 9 V input options
- REACH,ROHS,ISO9001,ISO14001
- 1 year warranty
Description:
Environment test:
The standard of environment test is the ambient temperature of 20℃ and relative humidity of 65%RH. lf no disputes occur,the test can be
conducted under the blow circumstance: the ambient temperature of 5~30℃ and relative humidity of 40~85%RH.

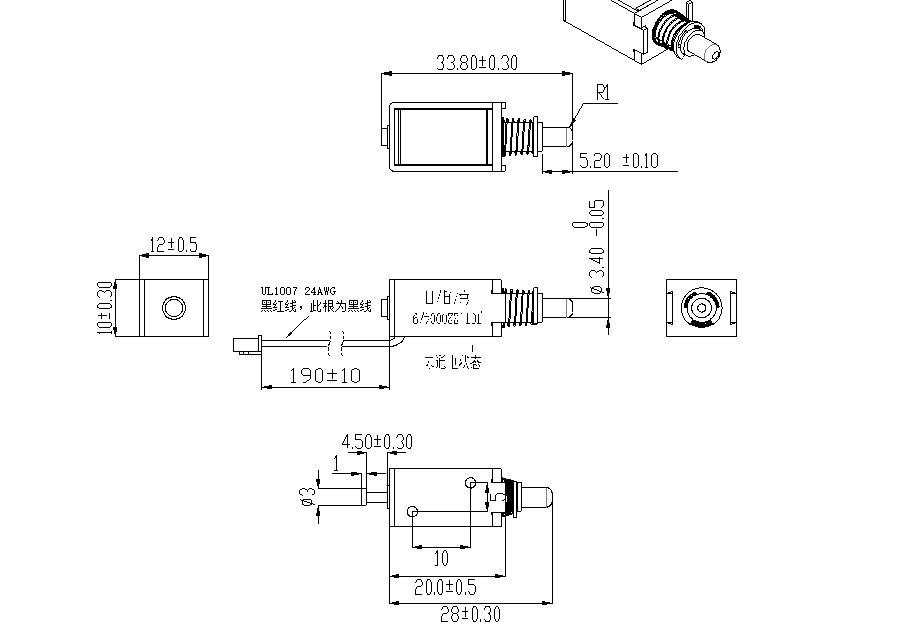

Specifications:
Applications:
FAQ:
Q1. Can I have a sample order for Solenoid Electromagnet?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,20-25working days for mass production.
Q3. Do you have any MOQ limit for Solenoid Electromagnet order?
A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Solenoid Electromagnet?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. What are the terms of trade?
A: FOB, EXW
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new air pump with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
