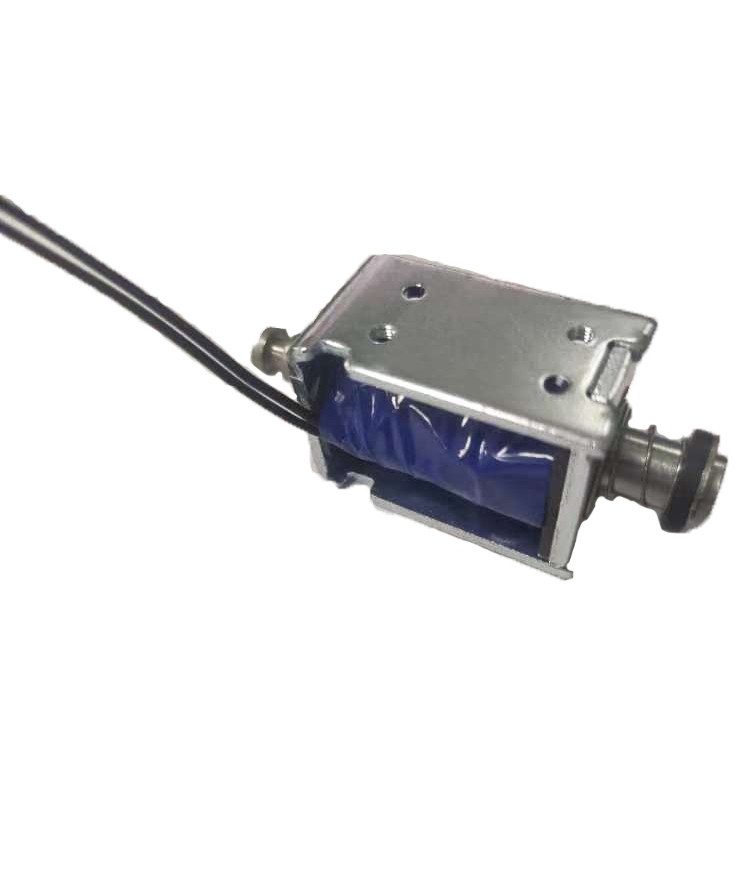

500gf Push Pull Solenoid Electromagnet DC 12V Electric Linear Solenoid

Place of Origin China
Brand Name TCS
Certification ISO9001、ISO14001、ROHS、REACH
Model Number JCT2637 seris
Minimum Order Quantity 1000PCS
Price Negotiate
Packaging Details Carton with foam pad
Delivery Time 20-25 work days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage DC12 V Flow 10~12V
Color Blue Current 1.5 MA
Rated Power Consumption 18±10%W Insulation Grade B
Application Safe Lock/etc Noise ≤50dB
Homing <1s DC Resistance 8±10%Ω
High Light

500gf Push Pull Solenoid Electromagnet

,

Electric Push Pull Solenoid Electromagnet

,

DC 12V Electric Linear Solenoid

Leave a Message
Product Description

DC 12V 500gf Solenoid Electromagnet Electric Linear Solenoid



Quick Detail:

  • The interior consists of a spiral coil
  • High temperature resistance 0-100℃,75%RH(Depends on the material)
  • DC12V input options
  • REACH,ROHS,ISO9001,ISO14001
  • 1 year warranty

 Description:



Insulation resistance:

The insulation resistor is 50MΩ Min at DC500V between Coil and non-charge Metal.
Dielectric Withstand:
It has to test between coil and outer mental parts at applying AC600V for 1second.( current≤0.5mA)
The lead tension:
Hanging a 0.5 Kg static load on the terminal of the valve will not cause a damage on the valve.




Specifications:





item
value
Warranty
1 year
Type
electromagnet
Customized support
OEM, ODM, OBM
Place of Origin
China

Guangdong
Brand Name
TCS
Model Number
JCT2637
Application
General
Temperature of Media
Normal Temperature
Power
Electric
Media
Gas
Structure
Safety
Rated voltage
12V
Voltage range
   10~12V
Revert
<1s
Maximum retention
>=500gf
Insulation grade
B



500gf Push Pull Solenoid Electromagnet DC 12V Electric Linear Solenoid 0



Applications:



500gf Push Pull Solenoid Electromagnet DC 12V Electric Linear Solenoid 1

FAQ:



Q1. Can I have a sample order for Solenoid Electromagnet?

A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparing ,20-25working days for mass production.



Q3. Do you have any MOQ limit for Solenoid Electromagnet order?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for Solenoid Electromagnet?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send new air pump with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
