Customized Micro DC Worm Gear Motor 12V Gear Reduction Motor 0.17A Current

Place of Origin China
Brand Name TCS
Certification ISO9001、ISO14001、IATF16949、ROHS、REACH
Model Number JGM032W0395
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details Carton with foam pad
Delivery Time 25 working days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight (KG) 0.05KG Gearing Arrangement Worm
Applicable Industries Intelligent Door Lock Input Speed 2.6RPM
Output Speed 2.1RPM Voltage 12V
Current 0.17A Customized Support OEM, ODM, OBM
High Light

Customized DC Worm Gear Motor 12V

,

ODM DC Worm Gear Motor 12V

,

Customized Gear Reduction Motor

Leave a Message
Product Description

Customized Manufacturer DC 12V Micro DC Gear Fan Motor Worm Gearbox

Quick Detail:

  • Applicable Industries: Beauty equipment, Medical devices, etc.
  • Shaft Size: 8mm
  • Package: Carton with foam pad
  • REACH,ROHS,ISO9001,ISO14001
  • 1 year warranty

Description:

Gear reduction motors are divided into three types: small gear reduction motors, medium gear reduction motors, and large gear reduction motors, all of which are composed of gear reducers and motors. Common medium-sized gear reduction motors typically have a rated power range of 0.1KW to 3.7KW, or 1/10HP to 5HP horsepower. It is divided into single-phase (110-220V) and three-phase (220V 380V), and can be equipped with an electromagnetic brake at the output end of the gear reduction motor.



Specification:
item
value
Warranty
1 year
Applicable Industries
Intelligent door lock
Weight (KG)
0.05KG
Customized support
OEM, ODM, OBM
Gearing Arrangement
Worm
Output Torque
20 gf.cm
Input Speed
2.6 RPM
Output Speed
2.1 RPM
Place of Origin
China

Guangdong
Brand Name
TCS
Model
JGM032W0395
Voltage
12V
current
0.17 A
Outline Dimension
34*82.8mm
Dimension box
34*52mm
Shaft Size
8mm
Lifetime
more than 200H(continuous operation)
Rated Torque
20 kgf.cm

Gearbox Data
Number of stages
3
4
5
Reduction ratio
112,179,330
343,474,636,877
1686
Gearbox length “L ”



Gearbox efficiency



Motor Data & Charecteristics



Rated
Volts
No-load
Load
Stall
Current
Speed
Current
Speed
Torque
Output power
Torque
Current
V
mA
rpm
mA
rpm
gf.cm
W
gf.cm
mA
24
62
28
385
24
6000
1.48
43000
3000
24
236
48
784
44
15000
6.8
150000
3.85

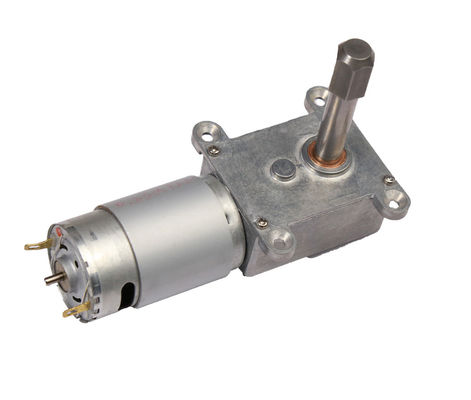

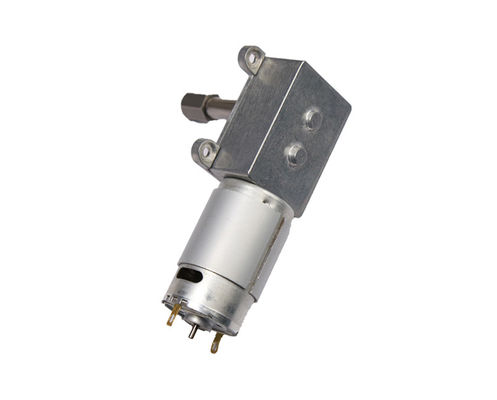

Customized Micro DC Worm Gear Motor 12V Gear Reduction Motor 0.17A Current 0

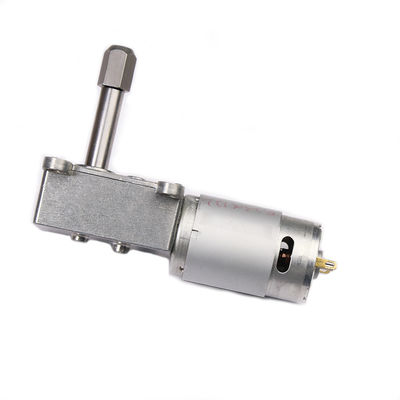

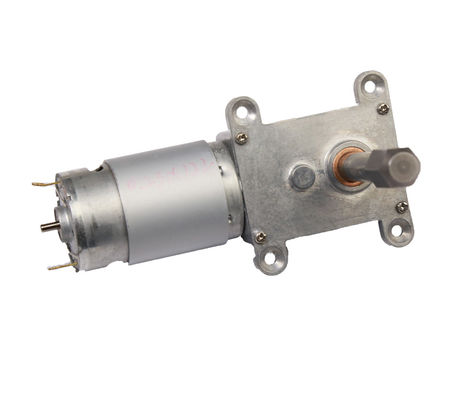

Customized Micro DC Worm Gear Motor 12V Gear Reduction Motor 0.17A Current 1









Applications:

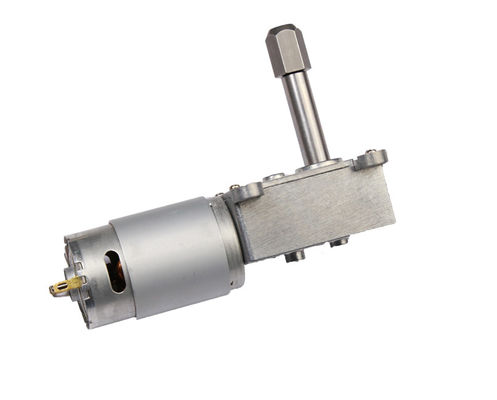

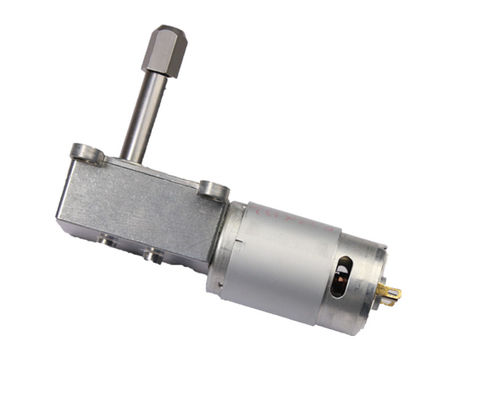

Customized Micro DC Worm Gear Motor 12V Gear Reduction Motor 0.17A Current 2



FAQ:



Q1. Can I have a sample order for micro gear motors?

A: Yes, we welcome sample orders to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparation,20-25working days for mass production.



Q3. Do you have any MOQ limit for micro gear motor orders?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx, or TNT. It takes 3-5 days to arrive. Airline and sea shipping are also optional.



Q5. How to proceed with an order for micro gear Motors?

A: Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places a deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer a guarantee for the products?

A: Yes, we offer 1 years warranty on our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send a new air pump with new order for a small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
