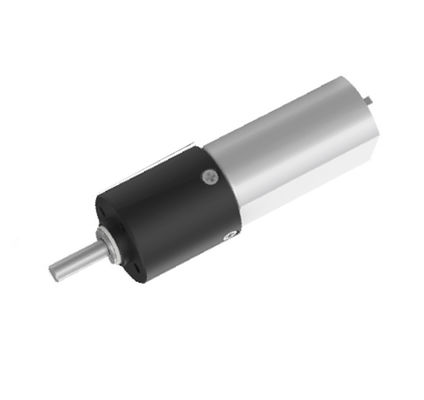

11.1V 20mm Micro Metal Gear Motor 320RPM 388RPM High Torque Planetary Gear Motor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 11.1V(Customized In 12-24v) | Applicable Industries | Intelligent Robot, Sweeper, BOAT, CAR, Electric Bicycle, Home Appliance, |
|---|---|---|---|
| Weight (KG) | 0.1KG | Gearing Arrangement | Planetary |
| Input Speed | 350RPM | Lifetime | >=200H |
| Current | 0.08A | Output Speed | 320RPM |
| Boundary Dimension | 20mm | Shaft Size | 20mm |
| Rated Torque | 0.6kgf.cm | ||
| High Light | 11.1V Micro Metal Gear Motor,320RPM Micro Metal Gear Motor,20mm High Torque Planetary Gear Motor |
||
Product Description
11.1V 20mm Diameter Dc Gear Motor Planetary 320 RPM 388RPM High Torque Dc Motors
Quick Detail:
REACH, ROHS, ISO9001, ISO14001
warranty: 1 year
Voltage: 11.1V(Customized in 12-24v)
Current: 0.08A
Output shaft size: 4cm
Model: JGM020P0150
Description:
The voltage range of this geared motor is 11.1V (Customized in 12-24V), the Current is 0.08A, the Boundary dimension is 20mm, the Shaft Size is 20mm, Rated Torque is 0.6kgf.cm, Output shaft size is 4cm, the product can be used in Intelligent robots, sweepers, BOAT, CAR, Electric bicycles, Home appliances, and Smart homes.

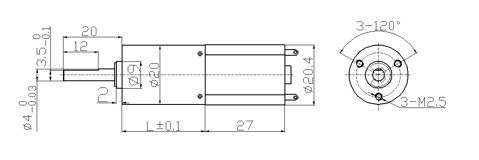

Specification
Gearbox Data
Motor Data ＆ Characteristics
Applications:
FAQ:
Q1. Can I have a sample order for micro gear motors?
A: Yes, we welcome sample orders to test and check quality.
Q2. What about the lead time?
A: 3-5 days for Sample preparation,20-25working days for mass production.
Q3. Do you have any MOQ limit for micro gear motor orders?
A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx, or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed with an order for micro gear Motors?
A: Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for formal order.
Fourthly We arrange the production.
Q6. What are the terms of trade?
A: FOB, EXW
Q7: Do you offer a guarantee for the products?
A: Yes, we offer 1 years warranty on our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send a new air pump with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
