20mm Micro Metal Gear Motor DC 12V 24V Planetary Gear Motor With Reduced

Place of Origin China
Brand Name TCS
Certification ISO9001、ISO14001、IATF16949、ROHS、REACH
Model Number JGM020A0130
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details Carton with foam pad
Delivery Time 25 working days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 12-24V Application Intelligent Robot, Sweeper, Others
Gearing Arrangement Planetary Boundary Dimension 20mm
Output Torque 0.3gf.cm Input Speed 39RPM
Output Speed 33RPM Current 0.05A
Rated Torque 0.3kgf.cm Shaft Size 4mm
High Light

20mm Micro Metal Gear Motor

,

DC 12V Micro Metal Gear Motor

,

24V Planetary Gear Motor

Leave a Message
Product Description

20mm 12v 24v Dc Planetary Gear Motor With Reduced



Quick Detail:



Warranty: A months

Gearing Arrangement: Planetary
Place of Origin: Guangdong, China

Applicable Industries: Intelligent robot, sweeper
Weight (KG): 0.1 KG
Customized support: OEM, ODM, OBM
Output Torque: 0.3gf.cm
Input Speed: 39RPM



Description:

The signal of this geared motor is JGM020A0130, its voltage is 12-24v, the current is 0.05A, the life is often greater than 200H, and its shaft size is 4mm. Products are widely used and can be used in small household appliances, intelligent robots, sweepers, and so on.



Specification:

item
value
Warranty
1 year
Applicable Industries
Intelligent robot, sweeper
Weight (KG)
0.1KG
Customized support
OEM, ODM, OBM
Gearing Arrangement
Planetary
Output Torque
0.3gf.cm
Input Speed
39RPM
Output Speed
33RPM
Place of Origin
China

Guangdong
Brand Name
TCS
Model
JGM020A0130
Transmission type
planetary
Voltage
12-24v
Current
0.05A
Lifetime
more than 200H
Boundary dimension
20mm
Shaft Size
4mm
Rated Torque
0.3kgf.cm

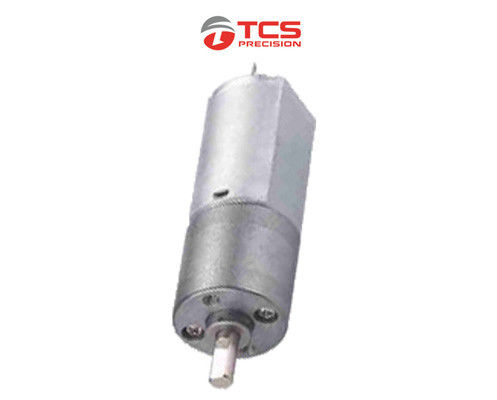

20mm Micro Metal Gear Motor DC 12V 24V Planetary Gear Motor With Reduced 0





Gearbox Data

Number of stages
4
5
6
7
8
Reduction ratio
18,23
35,44,55
67,84105,132
161,202252,316
386,484606,758
Gearbox length “L ”
16.2
17.7
19.2
20.7
22.2
Gearbox efficiency
65%
59%
53%
48%
43%



Motor Data & Characteristics


Rated Volt.
No load
Load
Stall
Current
Speed
Current
Speed
Torque
Output power
Torque
Current
V
mA
r/min
mA
r/min
gf.cm
W
gf.cm
mA
12
70
83
160
67
600
0.41
4000
1000
24
30
27
75
23
1400
0.33
6000
350

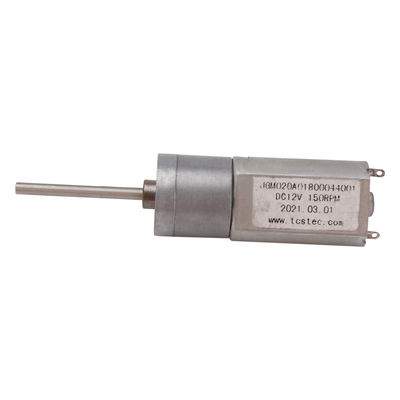

20mm Micro Metal Gear Motor DC 12V 24V Planetary Gear Motor With Reduced 1


Applications:

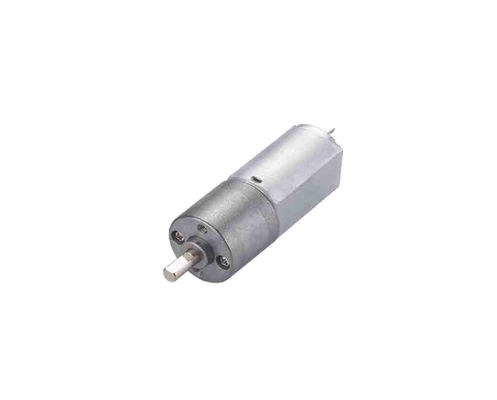

20mm Micro Metal Gear Motor DC 12V 24V Planetary Gear Motor With Reduced 2



FAQ:



Q1. Can I have a sample order for micro gear motors?

A: Yes, we welcome sample orders to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparation,20-25working days for mass production.



Q3. Do you have any MOQ limit for micro gear motor orders?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx, or TNT. It takes 3-5 days to arrive. Airline and sea shipping are also optional.



Q5. How to proceed with an order for micro gear Motors?

A: Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places a deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer a guarantee for the products?

A: Yes, we offer 1 years warranty on our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send a new air pump with new order for a small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
