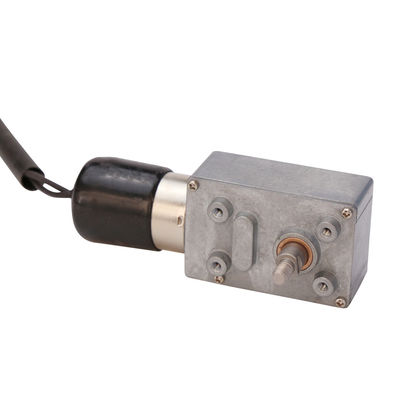

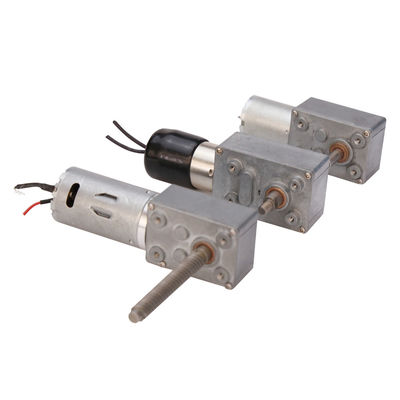

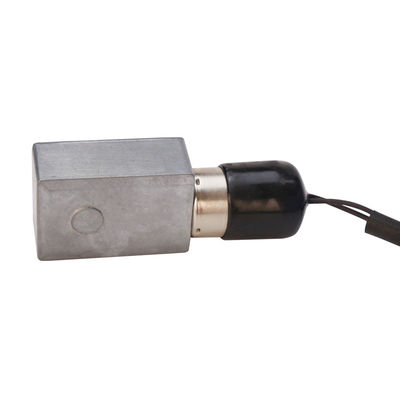

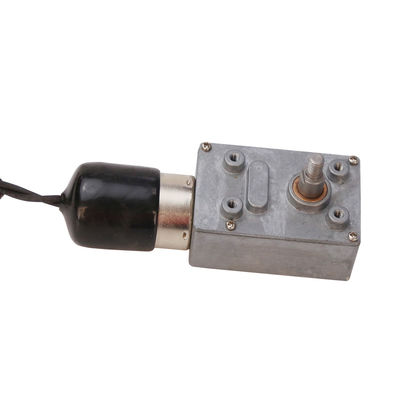

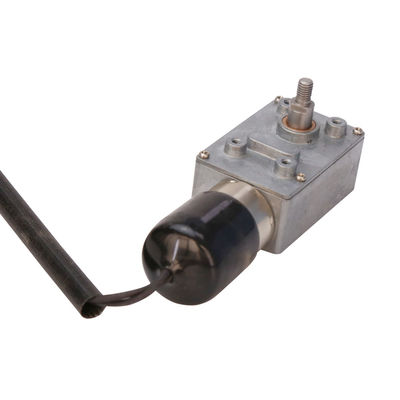

Vertical 34mm DC Worm Gear Motor Brushless Parallel Axis DC 12V Low Speed

Place of Origin China
Brand Name TCS
Certification ISO9001、ISO14001、IATF16949、ROHS、REACH
Model Number JGM034W0370
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details Carton with foam pad
Delivery Time 25 working days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 12V (can Be Made In 3V~24v) Applicable Industries Intelligent Robot, Sweeper, Car, Smart Robot
Weight (KG) 0.1KG Gearing Arrangement Parallel Axis Gear Motor
Output Speed 2.1RPM Input Speed 2.6 RPM
Current 0.17 A Shaft Size 8mm
Rated Torque 20 Kgf.cm Dimension Of Gear Box 34*52 Mm
High Light

34mm DC Worm Gear Motor

,

Brushless DC Worm Gear Motor

,

DC 12V Vertical Gear Motor

Leave a Message
Product Description

DC 12 V low speed 34 mm dc worm geared brushless motor Vertical gear reducer motor



Quick Detail:



Warranty: 1 year

Customized support: OEM, ODM, OBM

Outline Dimension: 34*82.8 mm
Shaft Size: 8mm
Lifetime: more than 200H(continuous operation)
Rated Torque: 20 kgf.cm



Description:



This geared motor is available in the category Worm, with an Output Speed of 2.1 RPM, a Lifetime of more than 200H (continuous operation), and a voltage range of 12 V (can be customized in 3 V to 24 V). Applicable Industries can be used in products such as Intelligent door locks.





Specification



item
value
Warranty
1 year
Applicable Industries
Intelligent door lock
Weight (KG)
0.1KG
Customized support
OEM, ODM, OBM
Gearing Arrangement
Worm
Output Torque
20gf.cm
Input Speed
2.6 RPM
Output Speed
2.1RPM
Place of Origin
China

Guangdong
Brand Name
TCS
Model
JGM034W0370
Voltage
12 v (can be customized in 3 V to 24 V)
current
0.17 A
Outline Dimension
34*82.8 mm
Dimension box
34*52 mm
Shaft Size
8mm
Lifetime
more than 200H(continuous operation)
Rated Torque
20 kgf.cm

Vertical 34mm DC Worm Gear Motor Brushless Parallel Axis DC 12V Low Speed 0



Gearbox Data

Number of stages
3
4
5
Reduction ratio
151,289,321

1074,1750,1988,3542
Gearbox length “L ”



Gearbox efficiency





Motor Data & Characteristics

Rated
Volt.
NO-load
Load
Stall
Current
Speed
Current
Speed
Torque
Output power
Torque
Current
V
mA
rpm
mA
rpm
gf.cm
W
gf.cm
mA
12
21
2.6
170
2.1
20000
0.43
79000
820

Vertical 34mm DC Worm Gear Motor Brushless Parallel Axis DC 12V Low Speed 1






Applications:



Vertical 34mm DC Worm Gear Motor Brushless Parallel Axis DC 12V Low Speed 2



FAQ:



Q1. Can I have a sample order for micro gear motors?

A: Yes, we welcome sample orders to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparation,20-25working days for mass production.



Q3. Do you have any MOQ limit for micro gear motor orders?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx, or TNT. It takes 3-5 days to arrive. Airline and sea shipping are also optional.



Q5. How to proceed with an order for micro gear Motors?

A: Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places a deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer a guarantee for the products?

A: Yes, we offer 1 years warranty on our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send a new air pump with new order for a small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
