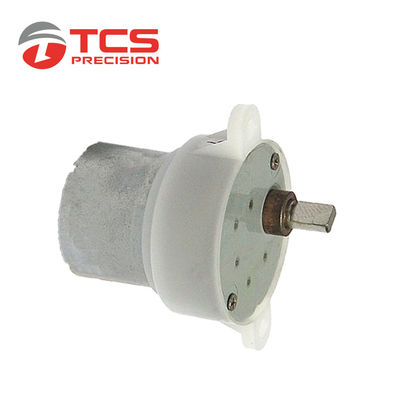

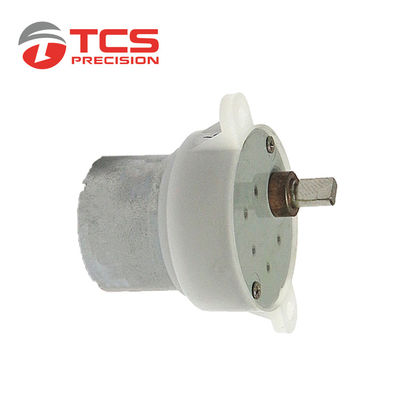

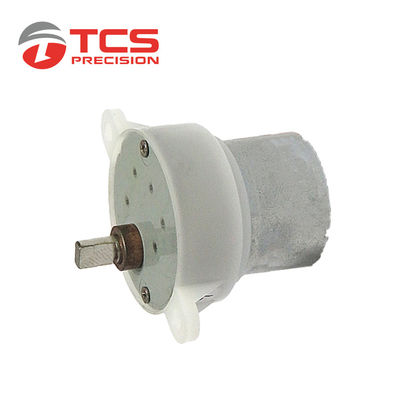

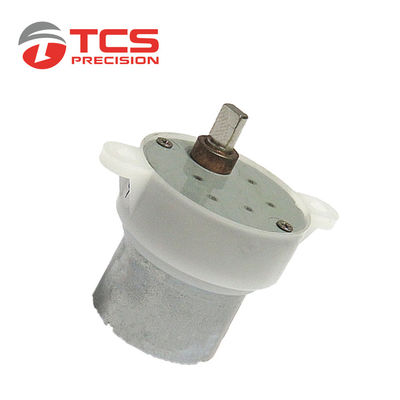

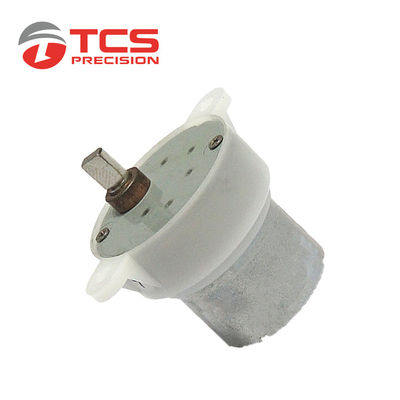

32mm Brushed Gear Motor Parallel Axis Low Noise DC 24V For Intelligent Robot

Place of Origin China
Brand Name TCS
Certification ISO9001、ISO14001、IATF16949、ROHS、REACH
Model Number JGM032B0300
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details Carton with foam pad
Delivery Time 25 working days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 24V(can Be Made In 3V~24v) Applicable Industries Intelligent Robot, Sweeper, Car, Smart Robot
Weight (KG) 0.05KG Gearing Arrangement Parallel Axis Gear Motor
Output Speed 130 RPM Input Speed 150 RPM
Current 0.1A Shaft Size 6mm
Rated Torque 0.4 Kgf.cm Transmission Type Parallel Axis Gear Motor
High Light

32mm Brushed Gear Motor

,

DC 24V Brushed Gear Motor

Leave a Message
Product Description

Low Noise 32 Mm 24 V Dc Brushed 300 Motor Parallel Axis Gear Motor



Quick Detail:



Warranty: 1 year

Customized support: OEM, ODM, OBM

Current: 0.1A
Lifetime: more than 100H
Boundary dimension: 32*23.4 mm
Shaft Size: 6 mm
Rated Torque: 0.4 kgf. cm
Dimension of gearbox: 32 mm



Description:



This geared motor weighs 0.05 KG, and the Output Torque is 0.4 gf. cm, the Input Speed is 150 RPM, and the Transmission type is a Parallel axis gear motor, which is widely used in home appliances, artificial intelligence, robotics, and many other products.





Specification



item
value
Warranty
3 months~1 year
Applicable Industries
Intelligent robot, Sweeper, Car, Smart Robot
Weight (KG)
0.05KG
Customized support
OEM, ODM, OBM
Gearing Arrangement
Parallel axis gear motor
Output Torque
0.4 gf.cm
Input Speed
150 RPM
Output Speed
130 RPM
Place of Origin
China

Guangdong
Brand Name
TCS
Model
JGM032B0300
Transmission type
Parallel axis gear motor
Voltage
24V(can be made in 3V~24v)
Current
0.1A
Lifetime
more than 100H
Boundary dimension
32*23.4 mm
Shaft Size
6 mm
Rated Torque
0.4 kgf.cm
Dimension of gear box
32 mm





Gearbox Data

Number of stages
3
4
5
Reduction ratio
32
56
261,360
Gearbox length “L ”



Gearbox efficiency



Motor Data & Characteristics

Rated
Volt
No load
Load
Stall
Current
Speed
Current
Speed
Torque
Output power
Torque
Current
V
mA
rpm
mA
rpm
gf.cm
W
gf.cm
mA
24
48
158
100
130
400
0.53
1500
450



32mm Brushed Gear Motor Parallel Axis Low Noise DC 24V For Intelligent Robot 0






Applications:



32mm Brushed Gear Motor Parallel Axis Low Noise DC 24V For Intelligent Robot 1



FAQ:



Q1. Can I have a sample order for micro gear motors?

A: Yes, we welcome sample orders to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparation,20-25working days for mass production.



Q3. Do you have any MOQ limit for micro gear motor orders?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx, or TNT. It takes 3-5 days to arrive. Airline and sea shipping are also optional.



Q5. How to proceed with an order for micro gear Motors?

A: Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places a deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer a guarantee for the products?

A: Yes, we offer 1 years warranty on our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send a new air pump with new order for a small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
