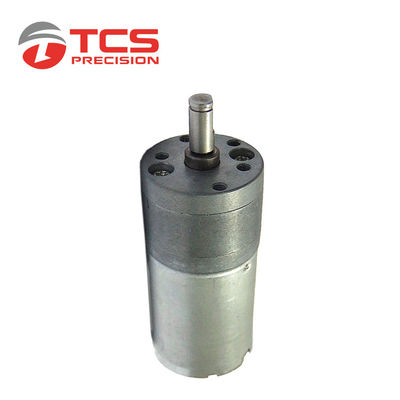

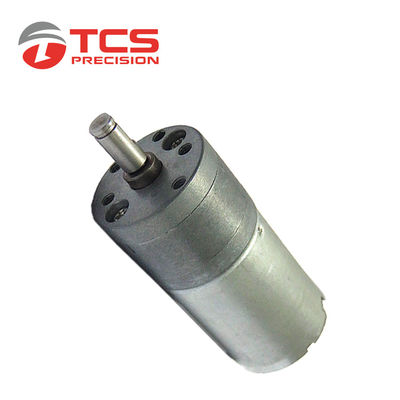

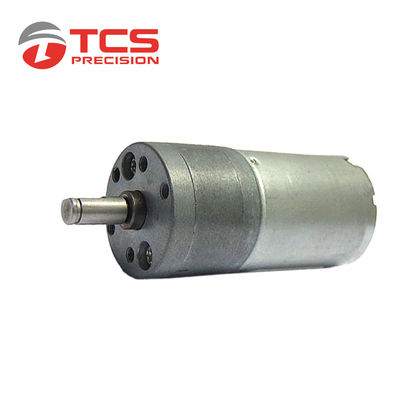

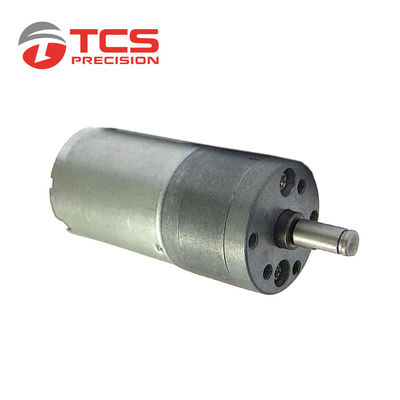

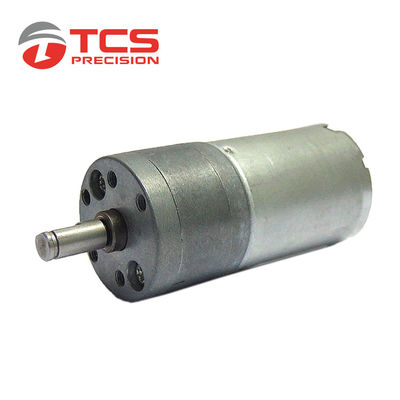

Low Noise Micro Metal Gear Motor 370 Parallel Axis 25mm DC 3V 12V Brushless

Place of Origin China
Brand Name TCS
Certification ISO9001、ISO14001、IATF16949、ROHS、REACH
Model Number JGM025A0370
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details Carton with foam pad
Delivery Time 25 working days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 12V(can Be Made In 3V~24v) Applicable Industries Intelligent Robot, Sweeper, Car, Smart Robot
Weight (KG) 0.1KG Gearing Arrangement Parallel Axis Gear Motor
Output Speed 91RPM Input Speed 100RPM
Current 0.2A Shaft Size 4mm
Rated Torque 0.8kgf.cm Customized Support OEM, ODM, OBM
High Light

25mm Micro Metal Gear Motor

,

DC 3V Micro Metal Gear Motor

,

Brushless Low Noise Gear Motor

Leave a Message
Product Description

Low Noise 25 Mm 3 V 12 V Dc Brushless 370 Parallel Axis Gear Motor



Quick Detail:



Warranty: 1 year

Customized support: OEM, ODM, OBM
Boundary dimension: 25mm
Rated Torque: 0.8kgf.cm
Gearing Arrangement: Parallel axis gear motor





Description:



This geared motor Applicable Industries can be used in Intelligent robots, sweepers, Car, Smart Robot and other products, its Output Torque is 0.8gf.cm, Rated Torque is 0.8kgf.cm, Voltage is 12V (can be made in 3V~24v).



Specification



item
value
Warranty
3 months~1 year
Applicable Industries
Intelligent robot, Wweeper,  Car, Smart Robot
Weight (KG)
0.1KG
Customized support
OEM, ODM, OBM
Gearing Arrangement
Parallel axis gear motor
Output Torque
0.8gf.cm
Input Speed
100RPM
Output Speed
91RPM
Place of Origin
China

Guangdong
Brand Name
TCS
Model
JGM025A0370
Transmission type
Parallel axis gear motor
Voltage
12V(can be made in 3V~24v)
Current
0.2A
Lifetime
more than 200H
Boundary dimension
25mm
Shaft Size
4mm
Rated Torque
0.8kgf.cm





Low Noise Micro Metal Gear Motor 370 Parallel Axis 25mm DC 3V 12V Brushless 0





Gearbox Data

Number of stages
4
5
6
7
8
Reduction ratio
20.4,22.7,
25,28
45,50,
55,62,
68
99,110,122,
136,151,167
217,241,268,
298,331,368,
409
478,531,590,
656,729,810,
900,1000
Gearbox length “L ”
19
21
23
25
27
Gearbox efficiency


65%


59%


53%


48%


43%



Motor Data & Characteristics

Rated Volt
No load
Load
Stall
Current
Speed
Current
Speed
Torque
Output power
Torque
Current
V
mA
r/min
mA
r/min
gf.cm
W
gf.cm
mA
12
92
100
200
91
800
0.75
8500
2100
3
135
52
1200
36
3000
1.1
8100
3900



Low Noise Micro Metal Gear Motor 370 Parallel Axis 25mm DC 3V 12V Brushless 1




Applications:



Low Noise Micro Metal Gear Motor 370 Parallel Axis 25mm DC 3V 12V Brushless 2



FAQ:



Q1. Can I have a sample order for micro gear motors?

A: Yes, we welcome sample orders to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparation,20-25working days for mass production.



Q3. Do you have any MOQ limit for micro gear motor orders?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx, or TNT. It takes 3-5 days to arrive. Airline and sea shipping are also optional.



Q5. How to proceed with an order for micro gear Motors?

A: Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places a deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer a guarantee for the products?

A: Yes, we offer 1 years warranty on our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send a new air pump with new order for a small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
