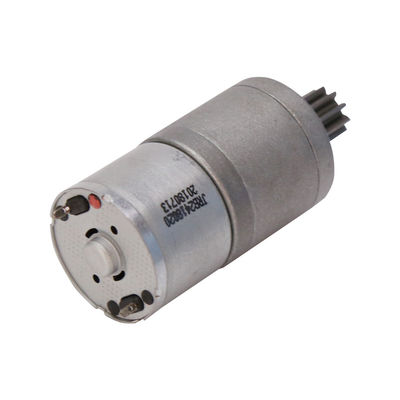

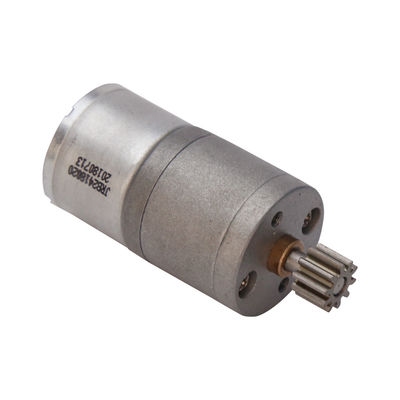

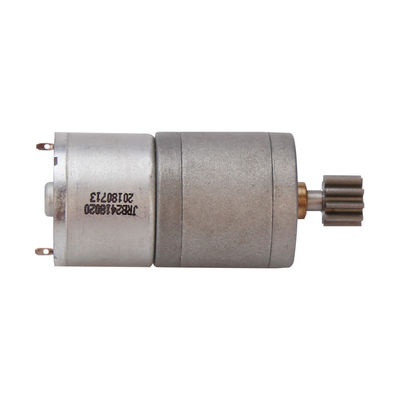

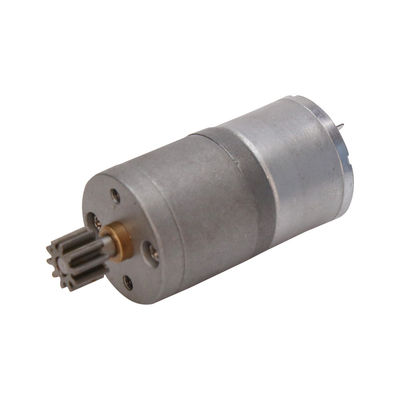

0.54A Micro Metal Gear Motor 25mm 12V 24V Parallel Shaft DC Gearmotor ROHS

Place of Origin China
Brand Name TCS
Certification ISO9001、ISO14001、IATF16949、ROHS、REACH
Model Number JGMO25A0310
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details Carton with foam pad
Delivery Time 25 working days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 9.0V(can Be Customized In 12V~24V) Applicable Industries Electronic Equipment, BOAT, Car, Electric Bicycle, Home Appliance
Weight (KG) 0.1KG Gearing Arrangement Parallel-axes Gear
Output Torque 0.24gf.cm Input Speed 34RPM
Current 0.54A Shaft Size 4mm
Rated Torque 2.5kgf.cm
High Light

0.54A Micro Metal Gear Motor

,

ROHS Micro Metal Gear Motor

,

24V Parallel Shaft DC Gearmotor

Leave a Message
Product Description

25mm 12v 24V Dc Parallel-Shaft Gears Motor



Quick Detail:



REACH, ROHS, ISO9001, ISO14001

Warranty: 1 year

Dimension of gearbox: 25*29.9mm
Shaft Size: 4mm
Rated Torque: 2.5kgf.cm
boundary dimension: 25mm




Description:



This is a geared motor with a voltage of 9.0V (can be customized in 12V~24V), Output Torque is 2.5gf.cm, its Gearing Arrangement is Parallel-axes gear, and the current of the product is 0.54A. This geared motor can be used in electronic equipment, BOAT, Cars, Electric bicycles, Home appliances, and other equipment.



Specification



item
value
Warranty
3 months~1 year
Applicable Industries
electronic equipment, BOAT, Car, Electric Bicycle, Home Appliance
Weight (KG)
0.1KG
Customized support
OEM, ODM, OBM
Gearing Arrangement
Parallel-axes gear
Output Torque
2.5gf.cm
Input Speed
34RPM
Output Speed
26RPM
Place of Origin
China

Guangdong
Brand Name
TCS
Model
JGMO25A0310
Voltage
9.0V(can be customized in 12V~24V)
Current
0.54A
Dimension of gear box
25*29.9mm
Shaft Size
4mm
Rated Torque
2.5kgf.cm
boundary dimension
25mm





0.54A Micro Metal Gear Motor 25mm 12V 24V Parallel Shaft DC Gearmotor ROHS 0





Gearbox Data

Number of stages
4
5
6
7
8
Reduction ratio
20.4,22.7,
25,28
45,50,
55,62,
68
99,110,122,
136,151,167
217,241,268,
298,331,368,
409
478,531,590,
656,729,810,
900,1000
Gearbox length “L ”
19
21
23
25
27
Gearbox efficiency


65%


59%


53%


48%


43%



Motor Data & Characteristics

Rated Volt.
No load
Load
Stall
Current
Speed
Current
Speed
Torque
Output
power
Torque
Current
V
mA
r/min
mA
r/min
gf.cm
W
gf.cm
mA
9
120
34
540
26
2500
0.67
10000
2000
6
40
50
150
34
500
0.17
1500
400



0.54A Micro Metal Gear Motor 25mm 12V 24V Parallel Shaft DC Gearmotor ROHS 1




Applications:



0.54A Micro Metal Gear Motor 25mm 12V 24V Parallel Shaft DC Gearmotor ROHS 2



FAQ:



Q1. Can I have a sample order for micro gear motors?

A: Yes, we welcome sample orders to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparation,20-25working days for mass production.



Q3. Do you have any MOQ limit for micro gear motor orders?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx, or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed with an order for micro gear Motors?

A: Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places a deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer a guarantee for the products?

A: Yes, we offer 1 years warranty on our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send a new air pump with new order for a small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
