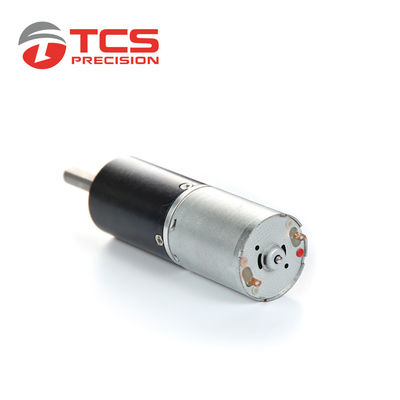

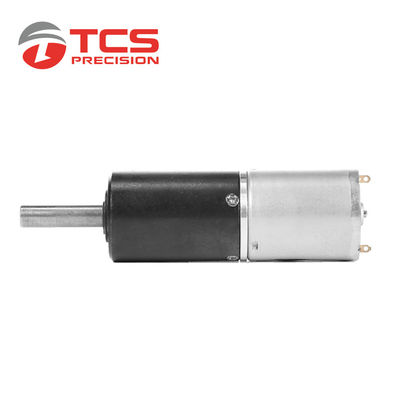

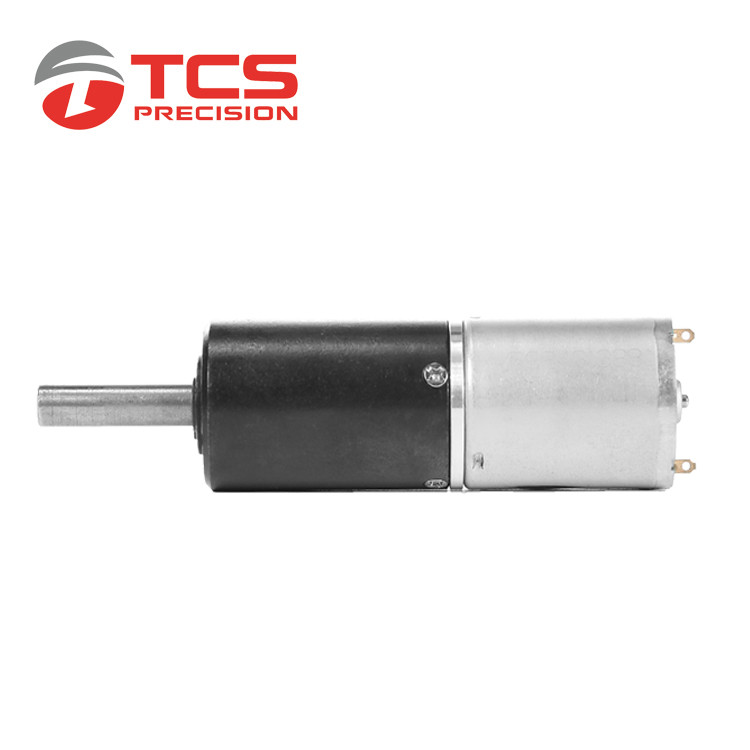

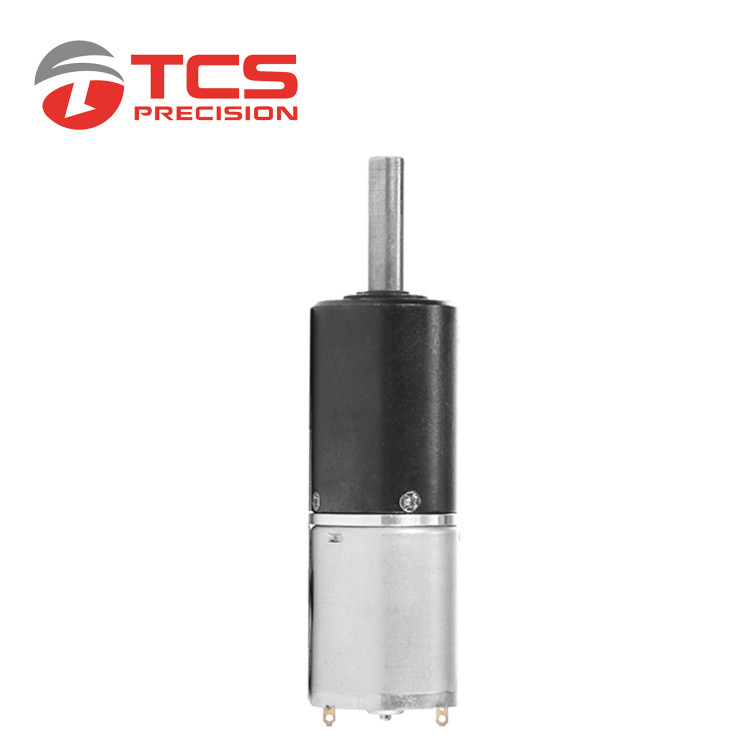

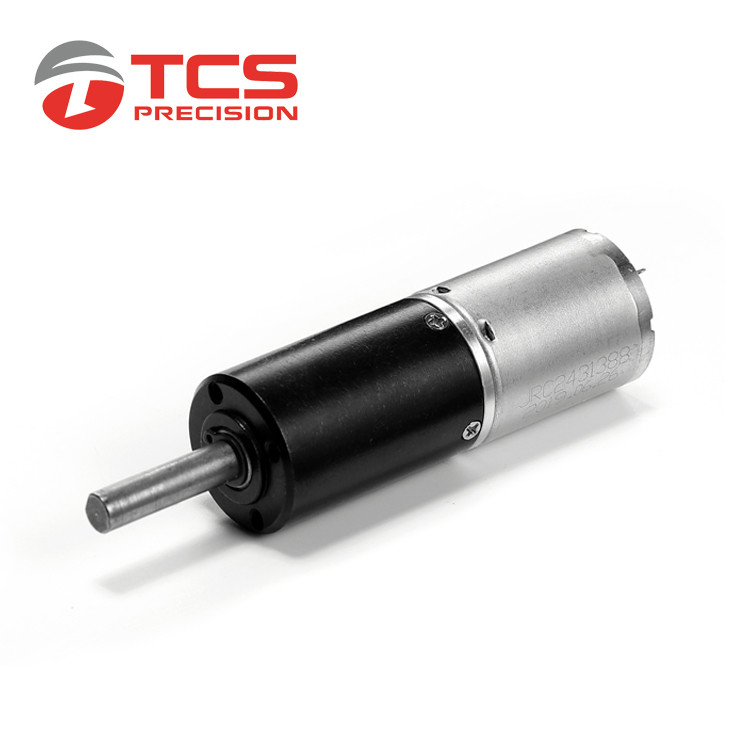

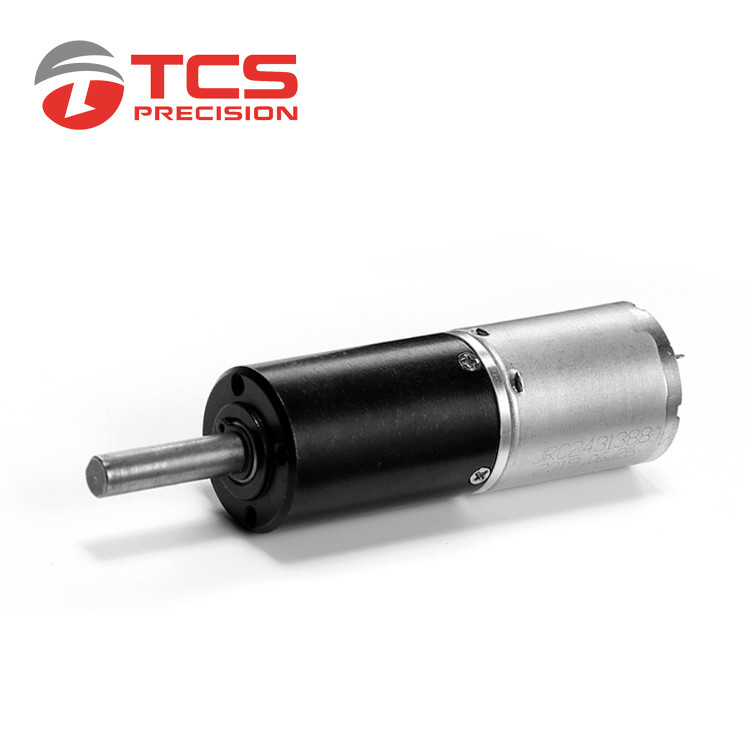

3.7V DC Planetary Micro Metal Gearmotor Low Noise 22mm Diameter

Place of Origin China
Brand Name TCS
Certification ISO9001、ISO14001、IATF16949、ROHS、REACH
Model Number JGMO22P0190
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details Carton with foam pad
Delivery Time 25 working days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 3.7V(can Be Customized In 12~24V) Applicable Industries Electronic Equipment, BOAT, Car, Electric Bicycle, Home Appliance
Weight (KG) 0.1KG Gearing Arrangement Planetary
Speed(rpm) 1500RPM Current 2.2A
Output Torque 0.24gf.cm Input Speed 2000RPM
Shaft Size 4mm Outline Dimension 22mm
High Light

Planetary Micro Metal Gearmotor

,

22mm Micro Metal Gearmotor

,

3.7V Metal Gear DC Motor

Leave a Message
Product Description

22mm 3.7V Dc Planetary Gear Motor Metal Low Noise



Quick Detail:



REACH, ROHS, ISO9001, ISO14001

warranty: 1 year

Outline Dimension: 22mm
Shaft Size: 4mm
Rated Torque: 0.24kgf.cm
Input Speed: 2000RPM





Description:



The type of this geared motor is Planetary, its voltage range is 3.7V (can be customized in 12~24V), its Rated Torque is 0.24kgf.cm, and its Outline Dimension is 22mm. The product application scope is electronic equipment, boats, cars, Electric bicycles, Home appliances, and other products.



Specification



item
value
Warranty
3 months~1 year
Applicable Industries
electronic equipment, BOAT, Car, Electric Bicycle, Home Appliance
Weight (KG)
0.1KG
Customized support
OEM, ODM, OBM
Gearing Arrangement
Planetary
Output Torque
0.24gf.cm
Input Speed
2000RPM
Output Speed
1500RPM
Place of Origin
China

Guangdong
Brand Name
TCS
Model
JGMO22P0190
Voltage
3.7V(can be customized in 12~24V)
Current
2.2A
Outline Dimension
22mm
Shaft Size
4mm
Rated Torque
0.24kgf.cm





3.7V DC Planetary Micro Metal Gearmotor Low Noise 22mm Diameter 0





Gearbox Data

Number of stages
1
2
3
4
5
Reduction ratio
4.08,4.64
16.6,18.9,21.5
68,77,88,
100
276,314,
357,406,
462
1126,1281,
1457,1657,
1884,2142
Gearbox length “L ”
15.3
20.5
25.7
30.9
36.1
Gearbox efficiency


90%


81%


73%


%


59%



Motor Data & Characteristics

Rated Volt.
No load
Load
Stall
Current
Speed
Current
Speed
Torque
Output
power
Torque
Current
V
mA
r/min
mA
r/min
gf.cm
W
gf.cm
mA
3.7
330
2000
2200
1500
240
3.7
1050
7600





3.7V DC Planetary Micro Metal Gearmotor Low Noise 22mm Diameter 1




Applications:



3.7V DC Planetary Micro Metal Gearmotor Low Noise 22mm Diameter 2



FAQ:



Q1. Can I have a sample order for micro gear motors?

A: Yes, we welcome sample orders to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparation,20-25working days for mass production.



Q3. Do you have any MOQ limit for micro gear motor orders?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx, or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed with an order for micro gear Motors?

A: Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places a deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer a guarantee for the products?

A: Yes, we offer 1 years warranty on our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send a new air pump with new order for a small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
