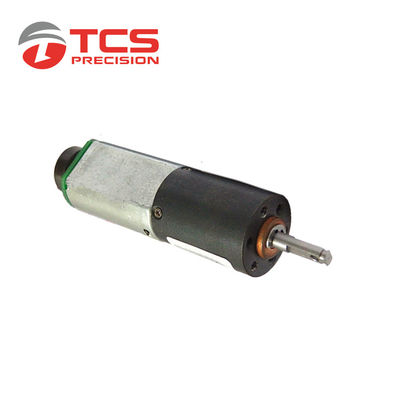

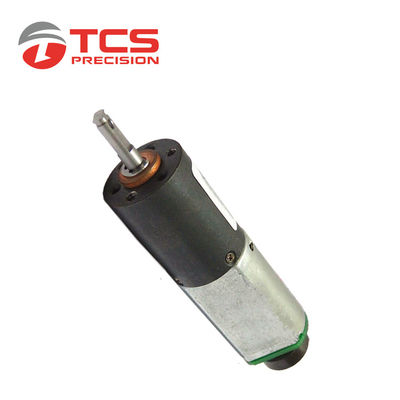

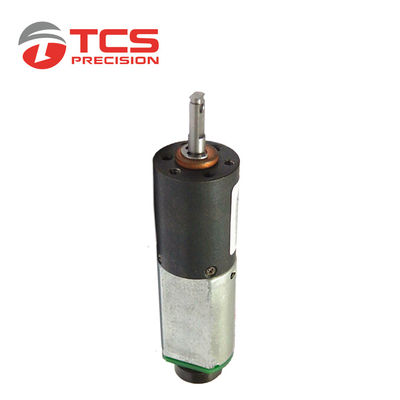

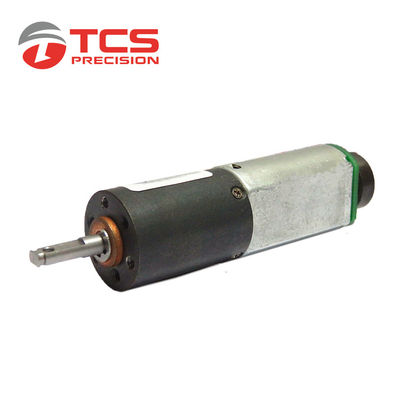

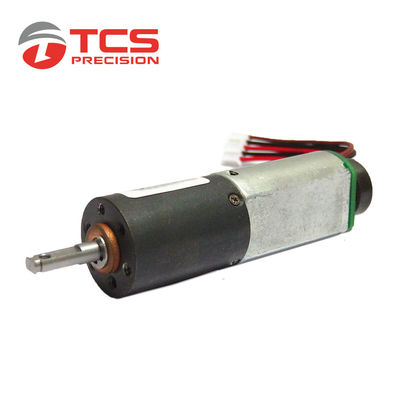

Planetary 50 RPM Micro Metal Gear Motor 20mm 12 Volt Low Rpm DC Motors

Place of Origin China
Brand Name TCS
Certification ISO9001、ISO14001、IATF16949、ROHS、REACH
Model Number JGM020P0180
Minimum Order Quantity 1000PCS
Price Negotiable
Packaging Details Carton with foam pad
Delivery Time 25 working days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 9v-24v Applicable Industries Smart Lock, Others
Weight (KG) 0.2 KG Gearing Arrangement Planetary
Speed(rpm) 50RPM Lifetime 100H
Current 0.51A Outline Dimension 20MM
Dimension Box 20MM Shaft Size 4mm
High Light

50 RPM Micro Metal Gear Motor

,

OEM Micro Metal Gear Motor

,

Planetary 12 Volt Low Rpm DC Motors

Leave a Message
Product Description

Planetary Gear Motor 12volt Low Rpm 20mm 900 Brush Motor



Quick Detail:



REACH, ROHS, ISO9001, ISO14001

warranty: 1 year

Current:0.51A

Output Torque: 2gf.cm
Input Speed: 75RPM
Lifetime: more than 100H





Description:



This is a geared motor in the category Planetary, it has an Output Torque of 2gf.cm, an Input Speed of 75RPM, a lifetime of 100H, and a Current of 0.51A. Products are generally used in Smart Lock and other products.



Specification



item
Gear motor
Warranty
1 year
Applicable Industries
Smart Lock
Weight (KG)
0.2KG
Customized support
OEM, ODM, OBM
Gearing Arrangement
Planetary
Output Torque
2gf.cm
Input Speed
75RPM
Output Speed
50RPM
Place of Origin
China

Guangdong
Brand Name
TCS
Model no
JGM020P0180
Voltage
9v-24v
Current
0.51A
Outline Dimension
20MM
Dimension box
20MM
Shaft Size
4 mm
Lifetime
100H
Rated Torque
2kgf.cm





Planetary 50 RPM Micro Metal Gear Motor 20mm 12 Volt Low Rpm DC Motors 0





Gearbox Data

Number of stages
1
2
3
4
Reduction ratio
4.38,5.4
19.2,23.7,29.2
84,104,128,158
370,455,561,690,850
Gearbox length “L ”
14.1
18.4
22.7
27
Gearbox efficiency
90%
81%
73%
66%



Motor Data & Characteristics

Gear ratio
Current
Speed
Current
Speed
Torque
Torque
Current
/
mA
r/min
mA
r/min
gf.cm
gf.cm
mA
19
190
900
530
830
300
3400
6200
24
80
200
270
160
200
1000
1000
53
310
350
630
320
600
7700
6500
62
460
360
1100
330
600
10000
11500
84
110
75
450
50
2000
5200
1200
96
100
55
180
45
1000
4800
550
128
110
65
410
51
2200
10000
1800
144
130
58
370
43
3200
12000
1300



Planetary 50 RPM Micro Metal Gear Motor 20mm 12 Volt Low Rpm DC Motors 1


Applications:



Planetary 50 RPM Micro Metal Gear Motor 20mm 12 Volt Low Rpm DC Motors 2



FAQ:



Q1. Can I have a sample order for micro gear motors?

A: Yes, we welcome sample orders to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparation,20-25working days for mass production.



Q3. Do you have any MOQ limit for micro gear motor orders?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx, or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed with an order for micro gear Motors?

A: Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places a deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer a guarantee for the products?

A: Yes, we offer 1 years warranty on our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send a new air pump with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
