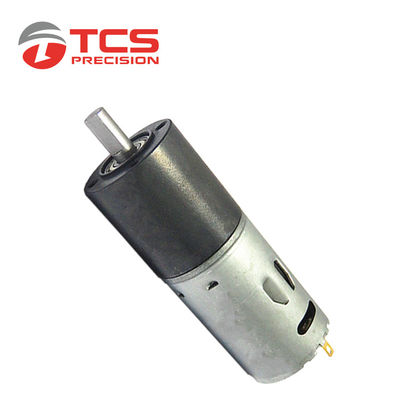

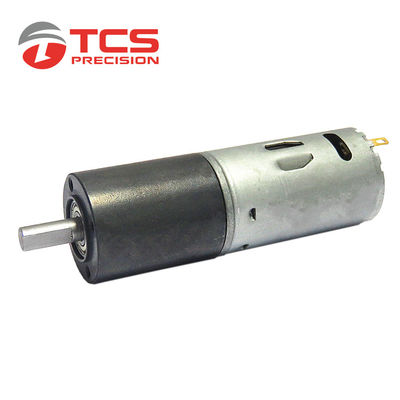

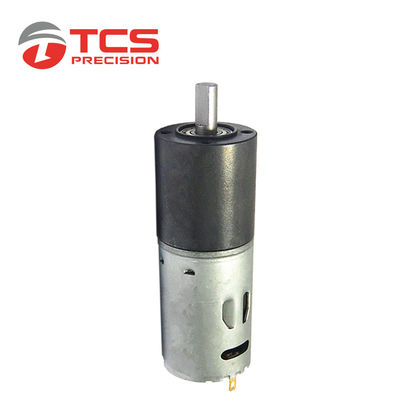

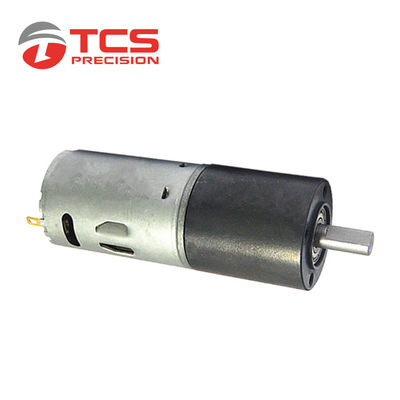

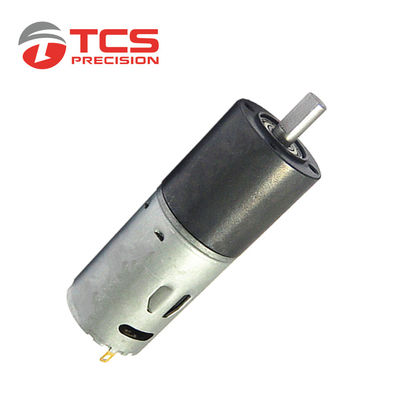

28mm Brushed Micro Metal Gear Motor 135RPM 24V 12V DC Planetary Gear Motor
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 12-24V | Applicable Industries | Intelligent Robot, Sweeper |
|---|---|---|---|
| Weight (KG) | 0.1 KG | Gearing Arrangement | Planetary |
| Speed(rpm) | 135RPM | Transmission Type | Planetary |
| Current | 0.26A | Boundary Dimension | 28*82.1mm |
| Continuous Current(a) | 0.05-0.25A | Shaft Size | 6mm |
| High Light | 28mm Micro Metal Gear Motor,135RPM Micro Metal Gear Motor,Brushed 12V DC Planetary Gear Motor |
||
Product Description
28mm 12v 24v Brushed Dc Planetary Gear Motor
Quick Detail:
REACH, ROHS, ISO9001, ISO14001
warranty: 1 year
Output Torque: 2gf.cm
Input Speed: 160RPM
Lifetime: more than 200H
Description:
This is a geared motor, its Gearing Arrangement type is Planetary, it weighs 0.1kg, its Output Torque is 2gf.cm, and its Input Speed is 160RPM. Products can be used in Intelligent robots, sweepers, and other equipment. The Lifetime of this geared motor is more than 200H.
Specification
Gearbox Data
|
Number of stages |
1 | 2 | 3 | 4 |
|
Reduction ratio |
4.07,5.18 | 16.5,21.1,26.9 | 67,86,109,139 | 274,349,444,566,721 |
|
Gearbox length “L ” |
27.5 | 35.5 | 43.5 | 51.5 |
|
Gearbox efficiency |
90% | 81% | 73% | 66% |
Motor Data ＆ Characteristics
|
Rated Volt. |
No load | Load |
Stall |
|||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | |
| V | mA | r/min | mA | r/min | gf. cm | W | gf. cm | mA |
| 24 | 120 | 300 | 746 | 230 | 3800 | 8.96 | 16000 | 3000 |
| 24 | 130 | 200 | 465 | 174 | 2800 | 5 | 26000 | 3000 |
Applications:
FAQ:
Q1. Can I have a sample order for micro gear motors?
A: Yes, we welcome sample orders to test and check quality.
Q2. What about the lead time?
A: 3-5 days for Sample preparation,20-25working days for mass production.
Q3. Do you have any MOQ limit for micro gear motor orders?
A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx, or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed with an order for micro gear Motors?
A: Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for formal order.
Fourthly We arrange the production.
Q6. What are the terms of trade?
A: FOB, EXW
Q7: Do you offer a guarantee for the products?
A: Yes, we offer 1 years warranty on our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send a new air pump with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
