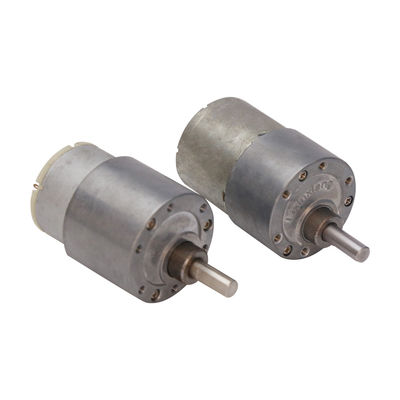

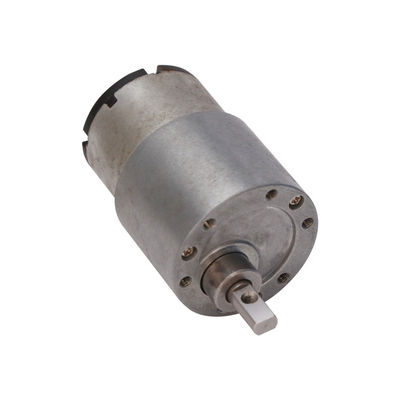

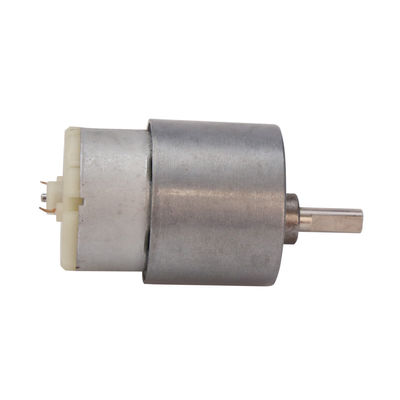

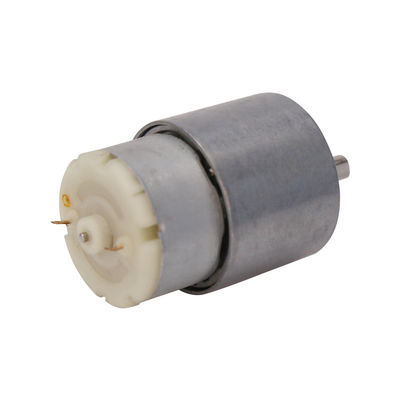

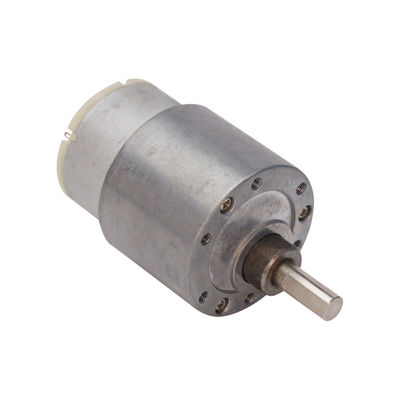

37mm Micro Planetary Gearbox 1000rpm 2000rpm 24V 3V 6V 12V DC Gear Motor
Product Details
| Voltage | DC3V~24V | Application | Household Appliances And Beauty Instruments, Etc |
|---|---|---|---|
| Noise | <60DB (30 Away) | Material | Steel |
| Speed(rpm) | 1-1600rpm | Type | Gear Motor,Micro Motor |
| Commutation | Brush,Brushless | Torque | Customized |
| Continuous Current(a) | 0.05-0.25A | Motor Type | Dc Brush Gear Motor,DC Brushless Three Phase |
| Highlight | 37mm Micro Planetary Gearbox,1000rpm Micro Planetary Gearbox,12V DC Gear Motor |
||
Product Description
37mm DC3V 6V 12V 24V Micro Gearmotor 1000rpm 2000rpm
Quick Detail:
- The materials are steel.
- High-temperature resistance 0-100℃
- DC3V-24V input options
- REACH, ROHS, ISO9001, ISO14001
- 1-year warranty
Description:
DC 3~24V micro DC gear motor, can accept customization, and send parameters to customer service staff.
Gearbox Data
|
Number of stages |
2 | 3 | 4 | 5 | 6 | 7 |
|
Reduction ratio |
6.8,10 | 20,30 | 61,90 | 184,270 | 552,810 | 1656,2430 |
|
Gearbox length “L” |
18 | 21.5 | 24 | 26.5 | 29 | 31.5 |
|
Gearbox efficiency |
81% | 73% | 65% | 59% | 53% | 47% |
Motor Data ＆ Characteristics
| Gear ratio | |||||||
| Current | Speed | Current | Speed | Torque | Torque | Current | |
| / | mA | rpm | mA | rpm | gf.cm | gf.cm | mA |
| 21 | 160 | 260 | 770 | 200 | 4200 | 8500 | 3300 |
| 30 | 240 | 310 | 1100 | 260 | 2200 | 19200 | 5600 |
| 61 | 70 | 170 | 380 | 140 | 3000 | 35000 | 3100 |
| 90 | 140 | 58 | 560 | 42 | 6200 | 19000 | 1700 |
| 120 | 120 | 50 | 300 | 46 | 6000 | 80000 | 4500 |
| 300 | 30 | 13 | 130 | 10 | 14000 | 25000 | 680 |
Applications:
FAQ:
Q1. Can I have a sample order for micro gear motors?
A: Yes, we welcome sample orders to test and check quality.
Q2. What about the lead time?
A: 3-5 days for Sample preparation,20-25working days for mass production.
Q3. Do you have any MOQ limit for micro gear motor orders?
A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx, or TNT. It takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. How to proceed with an order for micro gear Motors?
A: Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for formal order.
Fourthly We arrange the production.
Q6. What are the terms of trade?
A: FOB, EXW
Q7: Do you offer a guarantee for the products?
A: Yes, we offer 1 years warranty on our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send a new air pump with new order for a small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
