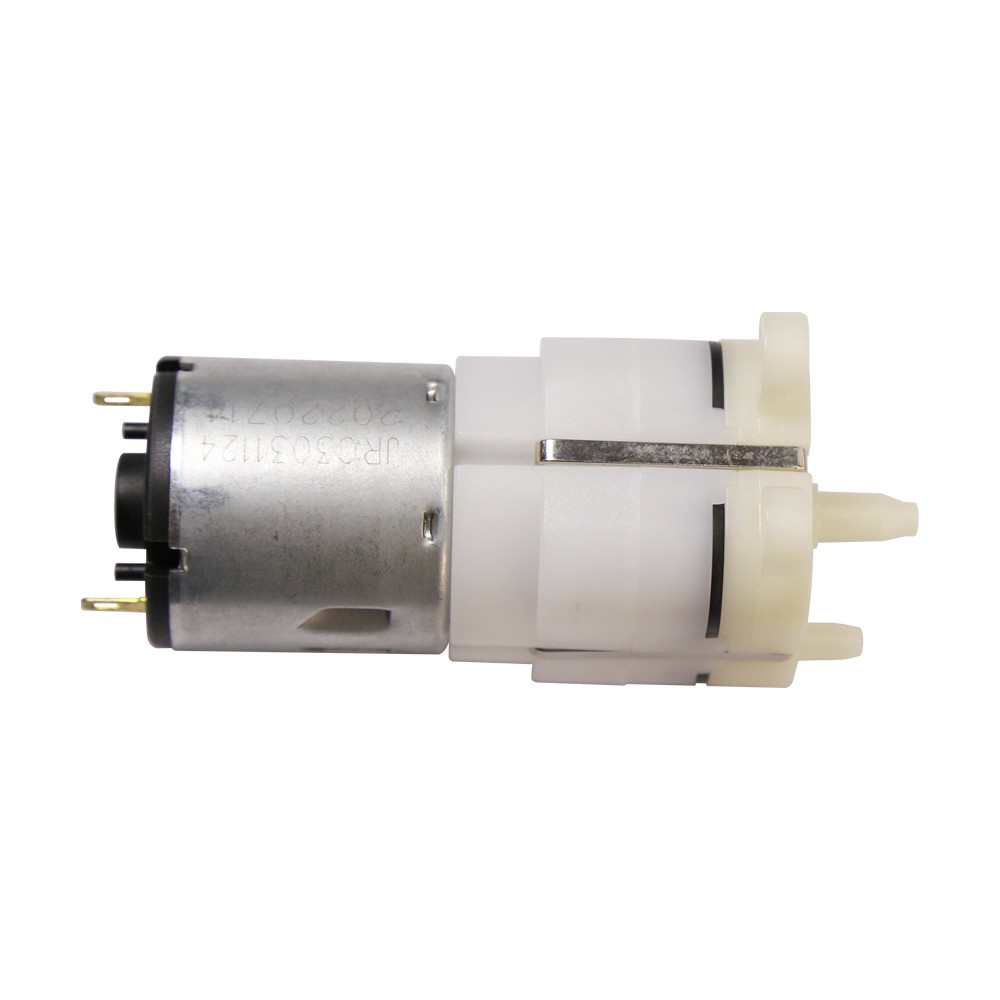

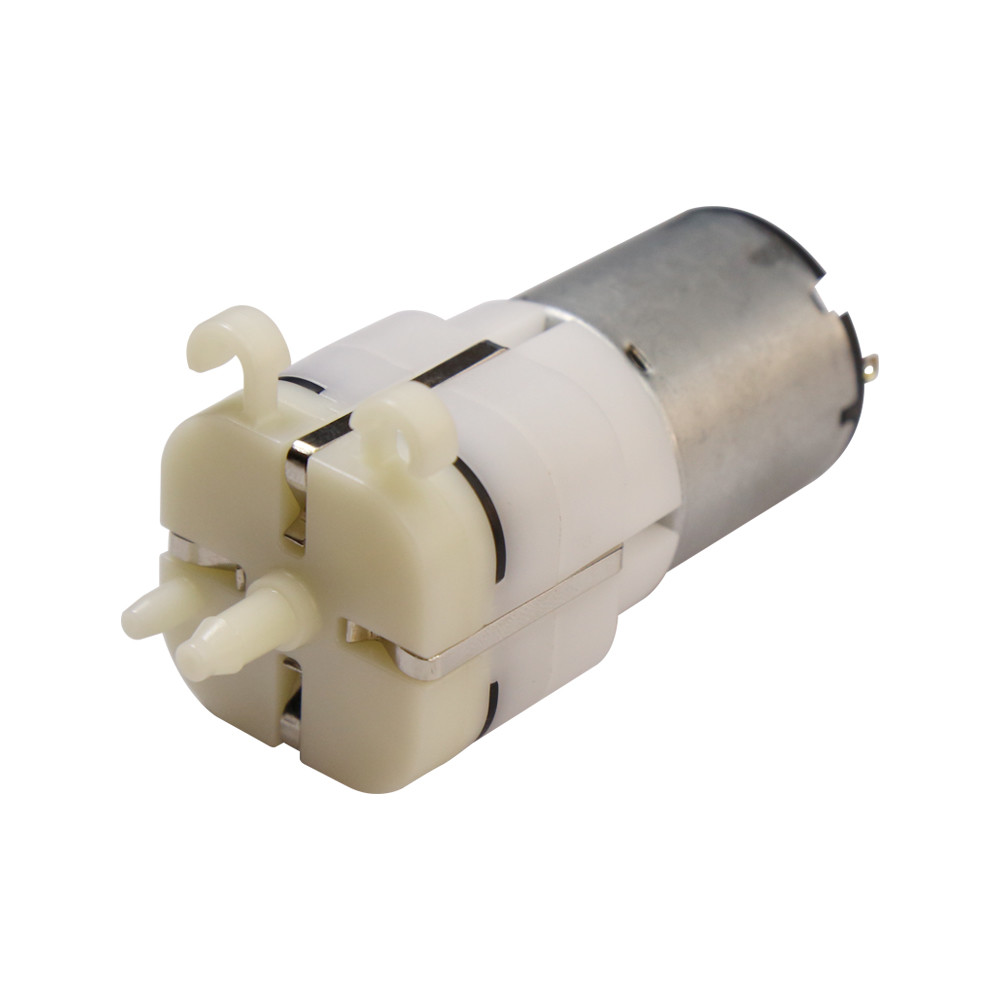

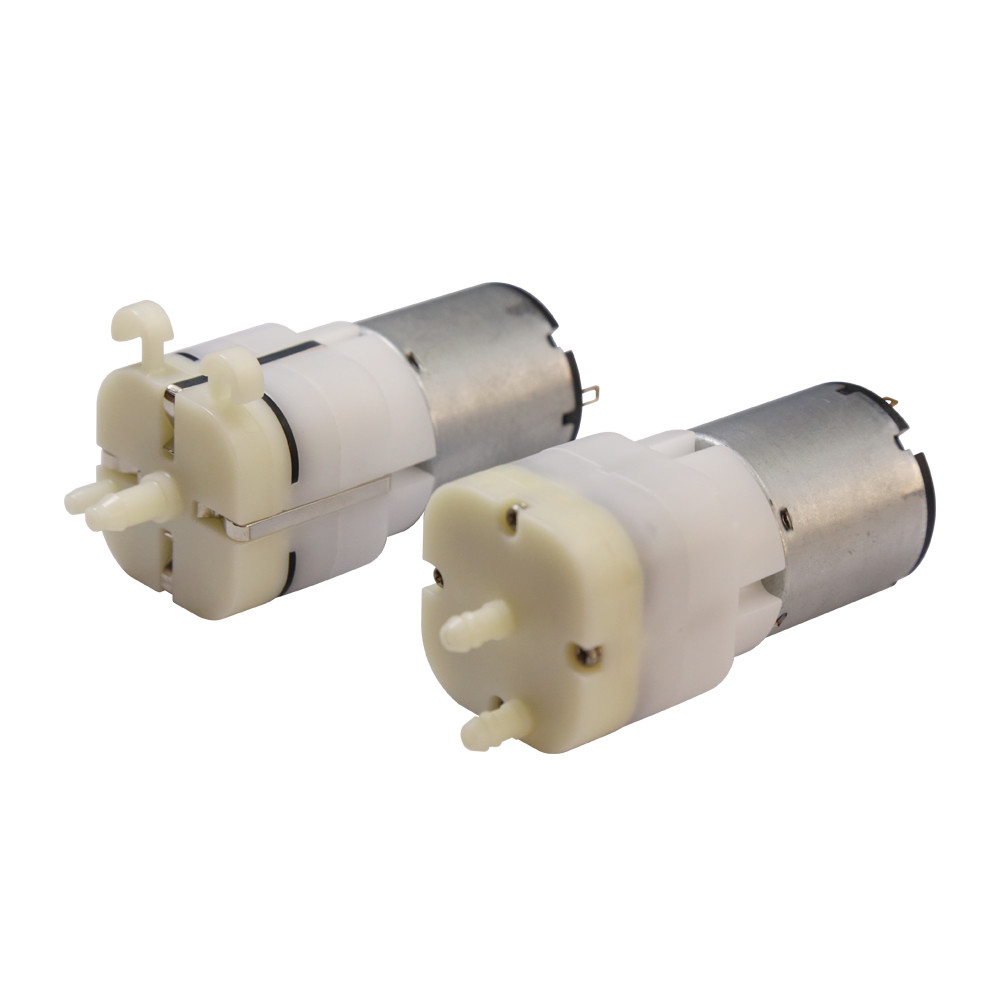

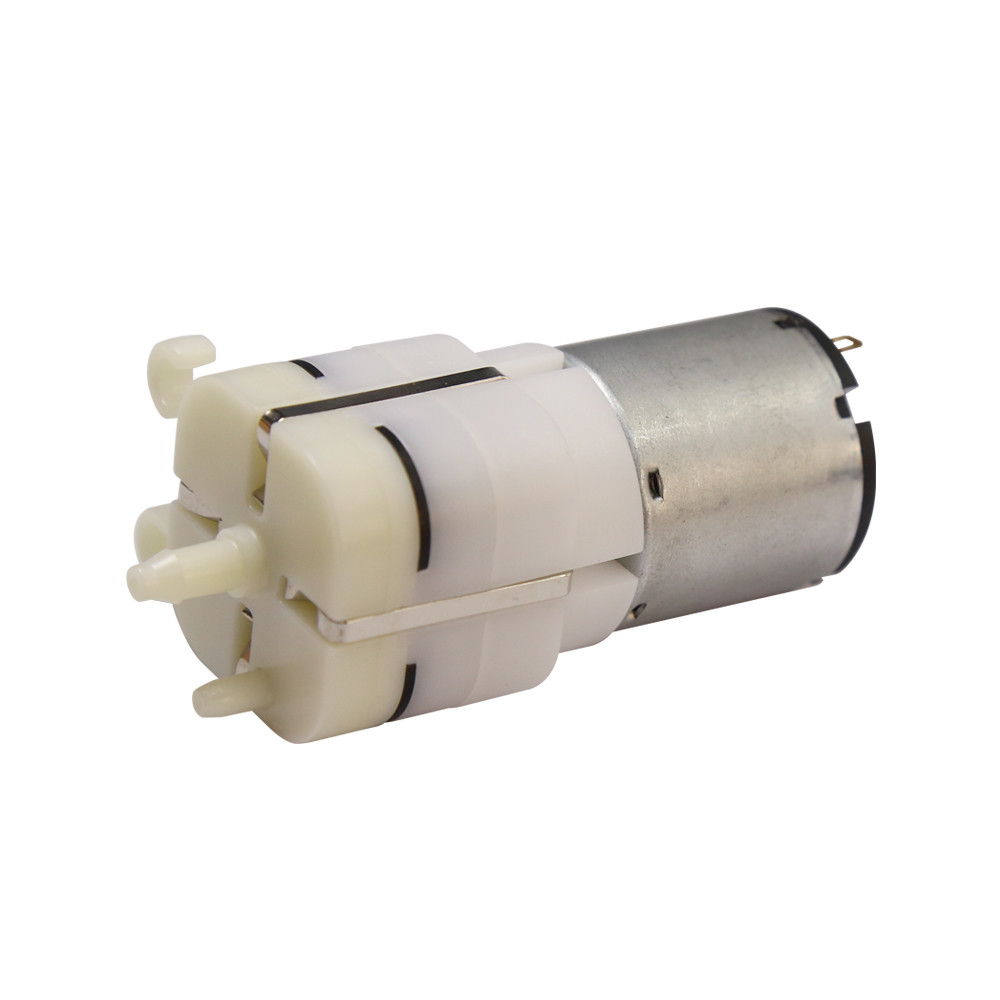

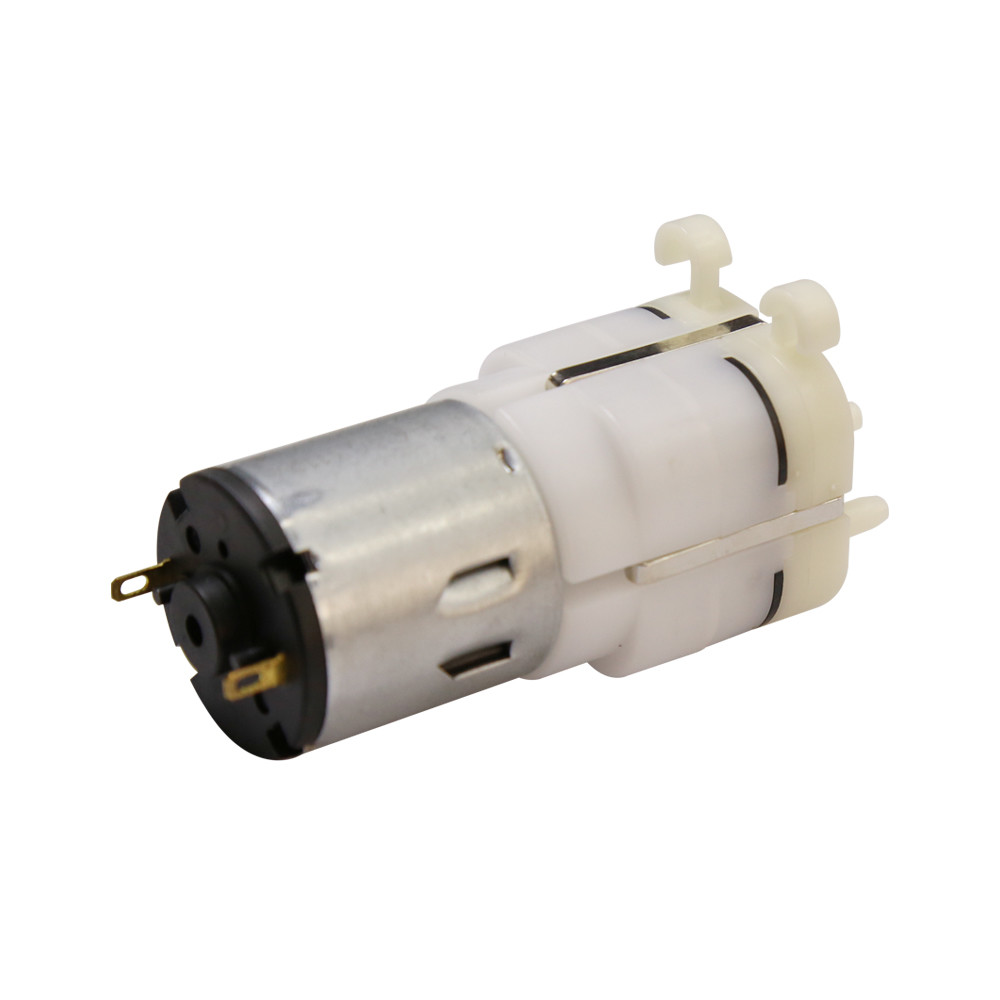

Noise Free ≤ 40dB Massage Chair Air Pump With 5cm Sponge Underneath

Place of Origin China
Brand Name TCS
Certification ISO9001、ISO14001、IATF16949、ROHS&REACH
Model Number JQB3031002
Minimum Order Quantity 500pcs
Price Negotiate
Packaging Details Carton packing
Delivery Time 25-30 days
Payment Terms TT
Supply Ability 1000000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Airtight <0.2mL/min Vibration ≤1.5m/S²(No-load Structure Borne Noise: Optimized Target)
Operating Voltage Range DC9.0V~16.0V Application Massage Chair
Max Pressure >80Kpa Warranty 1 Year
Color White Weight 0.5kg
High Light

Noise Free Massage Chair Air Pump

,

Sponge Underneath Massage Chair Air Pump

Leave a Message
Product Description

Product Description:

Introducing the Massage Chair Air Pump, the perfect addition to any automobile massage chair. This powerful air vacuum pump provides a load air flow rate of ≥2.5LPM when supplied with a 13.5V power supply and a pressure of 225 MmHg(300g/cm²). With its optimized target and ≤1.5m/S² vibration, the pump is able to provide a noise-free experience, even when tested with a 5 cm thick sponge placed 70 cm away from the noise meter. With its low noise level of <40dB, this pump is the perfect companion for your massage chair.



Features:

  • Product Name: Massage Chair Air Pump
  • Operating voltage range: DC9.0V~16.0V
  • Application: Massage Chair, Car Massage Chair Air Pump, Automobile Massage Chair Lumbar Air Pump, Air Vacuum Pump
  • Airtight: <0.2mL/min
  • Rated current: 200~500mA
  • Load noise: <42dB (Putting A 5 Cm Sponge Under The Pump, And Placing It About 70 Cm Away From The Noise Meter, The Evaluated Noise Level Shall While Pressurizing With DC 13.5V From 0 To 225 MmHg(300 g/cm²))


Technical Parameters:

The pump should be in full working order under a range of temperatures from -40℃ to +85℃ and humidity levels between 30% to 95% RH.

Furthermore, pumps which are not electrically connected should be in good conditions when the temperature range is between -40℃ to +90℃ and humidity is between 10% to 95% RH.



Applications:

The TCS Car Massage Chair Air Pump, model number JQB3031002, is a reliable and high-quality air vacuum pump that is widely used in car massage chairs. It has been certified by ISO9001, ISO14001, IATF16949, ROHS&REACH, guaranteeing its excellent performance. It features an airtight of less than 0.2mL/min and a maximum pressure of more than 80Kpa. It comes with a load air flow of more than 2.5LPM and comes in a carton box. With a minimum order quantity of 500pcs and a reasonable price, this product is available with a 1 year warranty and has a supply ability of more than 1,000,000 pcs per month. Delivery time is 25-30 days and payment terms are TT.



Customization:

Massage Chair Air Pump
  • Brand Name: TCS
  • Model Number: JQB3031002
  • Place of Origin: China
  • Certification: ISO9001,ISO14001,IATF16949,ROHS&REACH
  • Minimum Order Quantity: 500pcs
  • Price: Negotiate
  • Packaging Details: Carton packing
  • Delivery Time: 25-30 days
  • Payment Terms: TT
  • Supply Ability: 1000000+pcs per month
  • Vibration: ≤1.5m/S²(No-load Structure Borne Noise: Optimized Target)
  • Material: Nylon
  • Load noise: <42dB(Putting A 5 Cm Sponge Under The Pump, And Placing It About 70 Cm Away From The Noise Meter, The Evaluated Noise Level Shall While Pressurizing With DC 13.5V From 0 To 225 MmHg(300g/cm²))
  • Name: Massage Chair Air Pump
  • Application: Massage Chair
  • Keywords: Oxygenation Pump, Air Vacuum Pump, car massage chair air pump


Packing and Shipping:

Packaging and Shipping for Massage Chair Air Pump

The Massage Chair Air Pump will be packaged in a cardboard box with styrofoam inserts to ensure safe delivery. The box should be clearly labeled with the product name and shipping information. The box should also be sealed with strong tape to prevent any damage during shipping.

The Massage Chair Air Pump will be shipped using an appropriate shipping provider, such as FedEx or UPS. The shipping provider should be able to provide tracking information for the package to ensure a timely delivery. The shipping provider should also be able to provide insurance for the package in case of any damage or loss.
