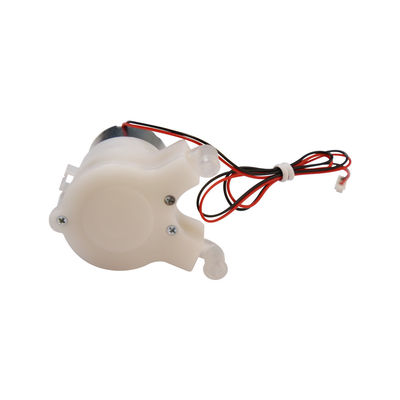

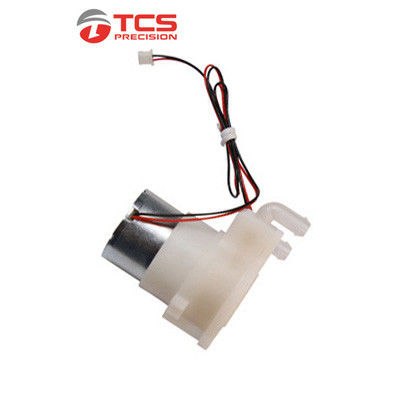

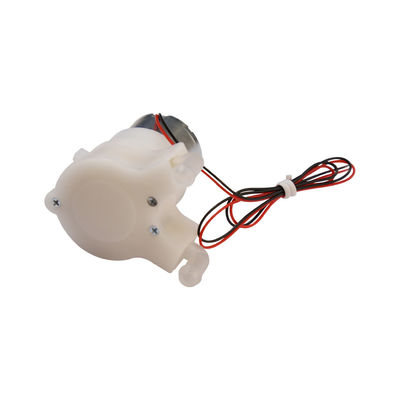

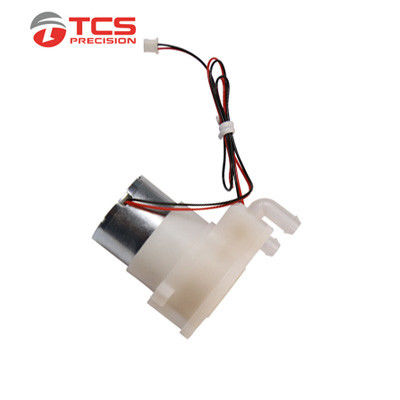

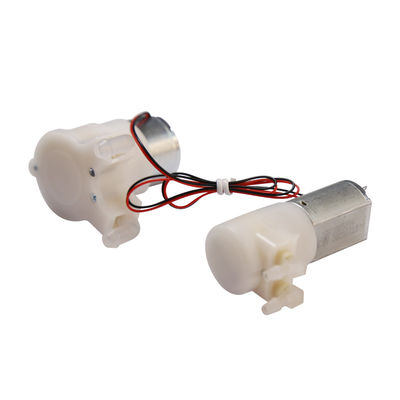

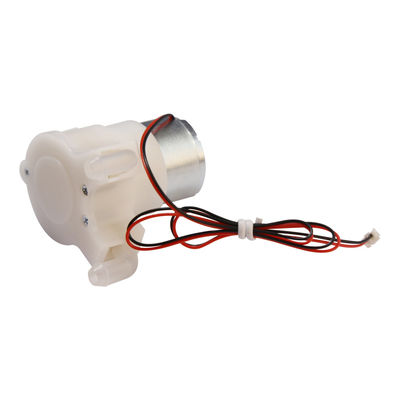

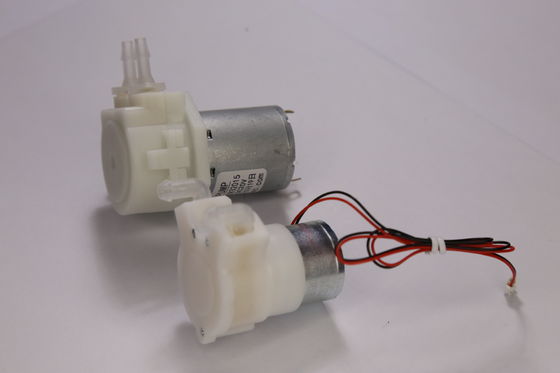

6V 12V 24V DC Micro Peristaltic Pump 0.15LPM 30Kpa For Sweeper Robot

Place of Origin China
Brand Name TCS
Certification ISO9001、ISO14001、IATF16949、ROHS、REACH
Model Number JSB2418 series 1
Minimum Order Quantity 1000PCS
Price USD 1.93 1000PCS
Packaging Details Carton with foam pad
Delivery Time 20-25 work days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage DC6.0V-24.0V Flow 80-150ml/min
Color White Pressure >30Kpa
Media The Liquid With Concentration/clean Water Size 42*26.8*18.7.mm
Application Sweeper Robot/handwash Basin Noise <60DB (30 Away)
Structure Peristaltic Pump Standard Or Nonstandard Standard Or Customized
High Light

24V DC Micro Peristaltic Pump

,

30Kpa Micro Peristaltic Pump

,

12V DC Peristaltic Pump

Leave a Message
Product Description

DC 6V,8V,9V,12V,24V micro peristaltic pump  80-150ml/min ,pressure>30Kpa, 9W



Quick Detail:

  • The materials are steel and plastic
  • High temperature resistance 0-50℃(Depends on the material)
  • DC6V~24V input options
  • REACH,ROHS,ISO9001,ISO14001
  • 1 year warranty

 Description:



What is peristaltic pumps?

Fluid is pumped by alternately squeezing and releasing the pump's elastic delivery hose. Just like pinching the hose with two fingers, with the movement of the fingers, a negative pressure is formed in the tube, and the liquid flows accordingly.





Specifications:



Item
Peristaltic pump
Brand name
TCS
Model NO.
JSB2418 series 1
Place of Origin
Shenzhen,China
Application
sweeper robot/handwash basin/ect.
Media
the liquid with concentration/clean water
Power Source
Electric
Pressure
>30Kpa
Structure
PERISTALTIC PUMP
Outlet Size
Consulting service
Voltage
DC6v~24V
Power
9W
Certification
REACH&ROSH
Flow
80-150ml/min
Noise
<60DB
Life test
Work for 1S, stop for 1S, 200,000 times
Environment
0-50℃,75% RH



6V 12V 24V DC Micro Peristaltic Pump 0.15LPM 30Kpa For Sweeper Robot 0







Applications:







6V 12V 24V DC Micro Peristaltic Pump 0.15LPM 30Kpa For Sweeper Robot 1









FAQ:



Q1. Can I have a sample order for peristaltic  pump?

A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparing ,20-25working days for mass production.



Q3. Do you have any MOQ limit for peristaltic pump order?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for peristaltic pump?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send new air pump with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
