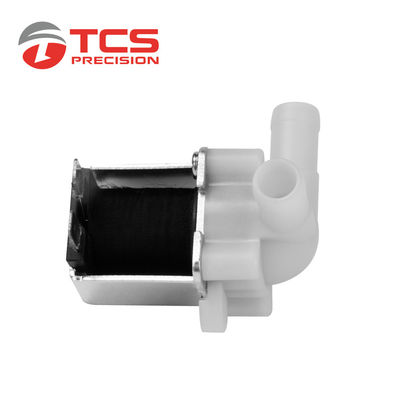

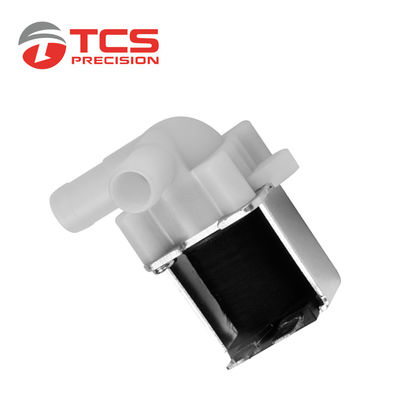

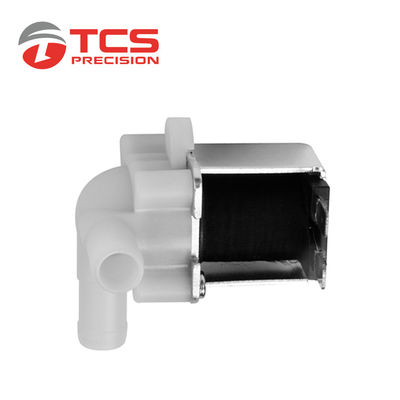

2 Way 2 Position Mini Electric Water Valve 12W Solenoid Valve For Drinking Machine

Place of Origin China
Brand Name TCS Precision
Certification ISO9001、ISO14001、ROHS、REACH
Model Number JQF3033
Minimum Order Quantity 500PCS
Price negotiate
Packaging Details Carton with foam pad
Delivery Time 20-25 days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage Range DC108-132V Rated Flow 0-14.5LPM
Application Drinking Machine,Coffee Machine Flow >1200ml/min
Power 12.0W Power Source Electric
Current 100mA Operation Normally Closed,Two Positions, Two Ways
High Light

2 Way Mini Electric Water Valve

,

12W Mini Electric Water Valve

,

12W Solenoid Valve For Drinking Machine

Leave a Message
Product Description

2  Way 2 Position  Electric Solenoid Valve  For Drinking Machine

Quick Detail:



  • Product Name: Micro solenoid valve
  • Structure:Normal Close, Two Positions, Two Ways
  • Voltage range: DC108-132V
  • Rated flow: 0-14.5LPM
  • Power Source: Electric
  • Media: Water
  • Type: Water Valves
  • Perfect for tight spaces and small projects

Description:

    With a current rating of 100mA, this solenoid valve is suitable for use in a range of applications, including drinking machines and coffee machines. Its compact size and reliable operation make it an ideal choice for use in small-scale systems where space is at a premium.

This solenoid valve operates on a voltage range of DC108-132V, making it suitable for use in a range of systems that require precise control over water flow. Its two-position operation means that it can be set to either fully open or fully closed, allowing for precise control over the flow of water through a system.

Technical Parameters:

Product Attribute Value
Type 2-way Water Valve
Max Temperature 100℃
Rated Voltage DC120V
Voltage Range DC108-132V
Rated Flow 0-14.5LPM
Power 12.0W
Flow >1200ml/min
Application Drinking Machine, Coffee Machine
Media Water
Power Source Electric
Type Mini Electric Water Valve, Normally Closed Solenoid Valve


Applications:

2 Way 2 Position Mini Electric Water Valve 12W Solenoid Valve For Drinking Machine 0

FAQ:



Q1. Can I have a sample order for micro water pump?

A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparing ,20-25working days for mass production.



Q3. Do you have any MOQ limit for micro water pump order?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for micro water pump?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send new air pump with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
