3V 6V DC Electric Solenoid Air Valve 1W For Medical Monitor Massager

Place of Origin China
Brand Name TCS
Certification ISO9001、ISO14001、ROHS、REACH
Model Number JQF1015 series1
Minimum Order Quantity 500PCS
Price Negotiate
Packaging Details Carton with foam pad
Delivery Time 20-25 days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage Range DC3V-6V Rated Voltage 4.5V
Color Blue Power 1W
Exhaust Time <5S Flow >1.0LPM
Structure Normal Open Applacation Electronic Blood Pressure Meter/Medical Monitor
Media Air Standard Or Nonstandard Standard Or Customized
High Light

3V Electric Solenoid Air Valve

,

1W Electric Solenoid Air Valve

,

6V DC Solenoid Valve

Leave a Message
Product Description

Dc 3V 6V Solenoid Air Valve For Medical Monitor Massager



Quick Detail:



  • The materials are steel.
  • High temperature resistance 0-50℃,75%RH(Depends on the material)
  • DC3V-6V input options
  • REACH, ROHS, ISO9001, ISO14001
  • 1 year warranty



Description:





This product is structured as Normally opened, two position three ways. The maximum pressure can reach 350mmHg, this product is very versatile and can be used in electronic blood pressure monitors, medical monitors and massagers, and other products. The quality and quality are selected from the best materials.





Specifications:



Item
valve
Warranty
1 year
Type
Air Valves & Vents
Customized support
OEM, ODM, OBM, Software reengineering
Place of Origin
China

Guangdong
Brand Name
TCS
Model Number
JQF1015 series1
Application
General
Temperature of Media
Normal Temperature
Power
Solenoid
Media
Air
Structure
normal open,Two position, Three ways
Insulation class
A
Max pressure
350mmHg
voltage range
3.0-6.0V
current
225mA
rated voltage
4.5V

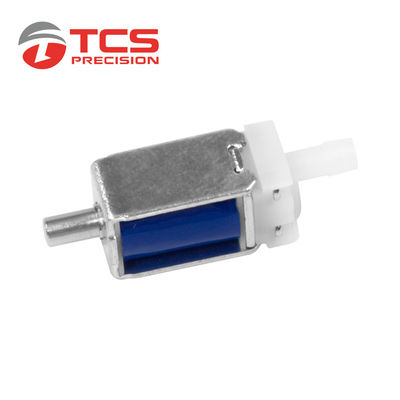

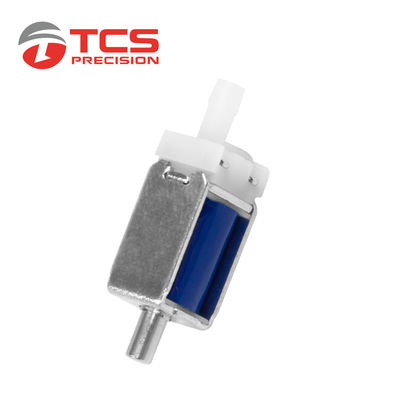

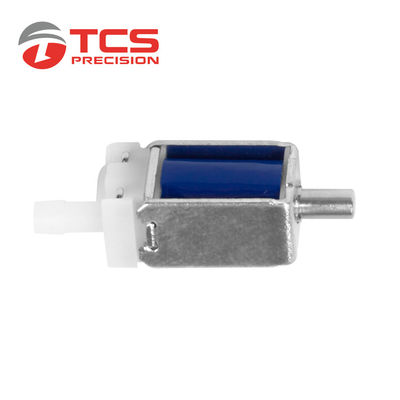

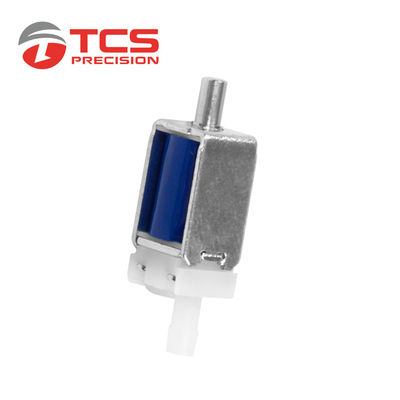

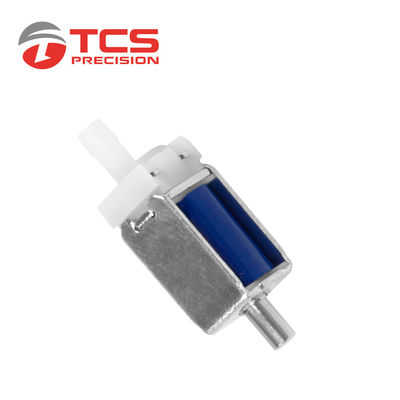

3V 6V DC Electric Solenoid Air Valve 1W For Medical Monitor Massager 0


Application:

3V 6V DC Electric Solenoid Air Valve 1W For Medical Monitor Massager 1


FAQ:



Q1. Can I have a sample order for solenoid valves?

A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

A: 3-5 days for Sample preparing ,20-25working days for mass production.



Q3. Do you have any MOQ limit for solenoid valves order?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for solenoid valves?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6. What are the terms of trade?

A: FOB, EXW



Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.



Secondly, during the guarantee period, we will send new air pump with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
