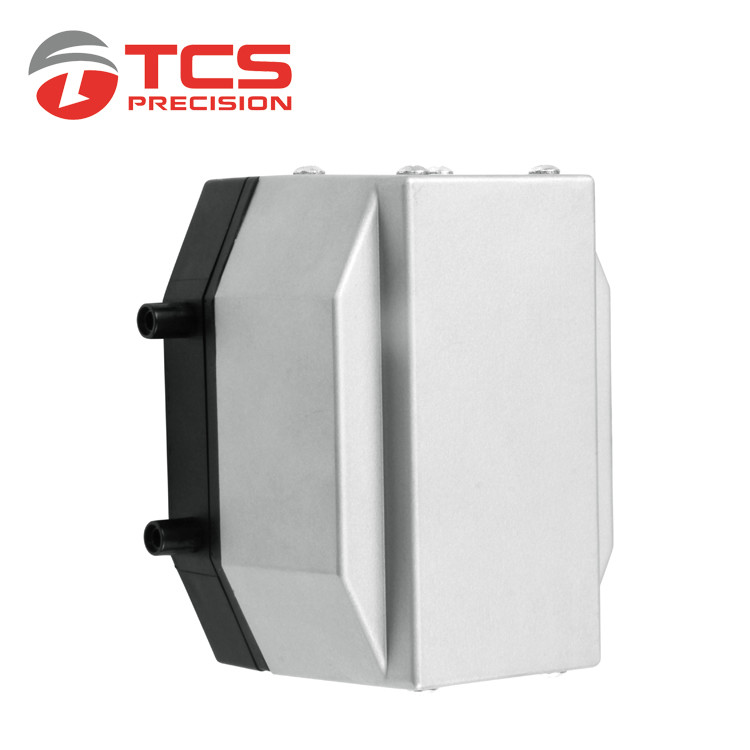

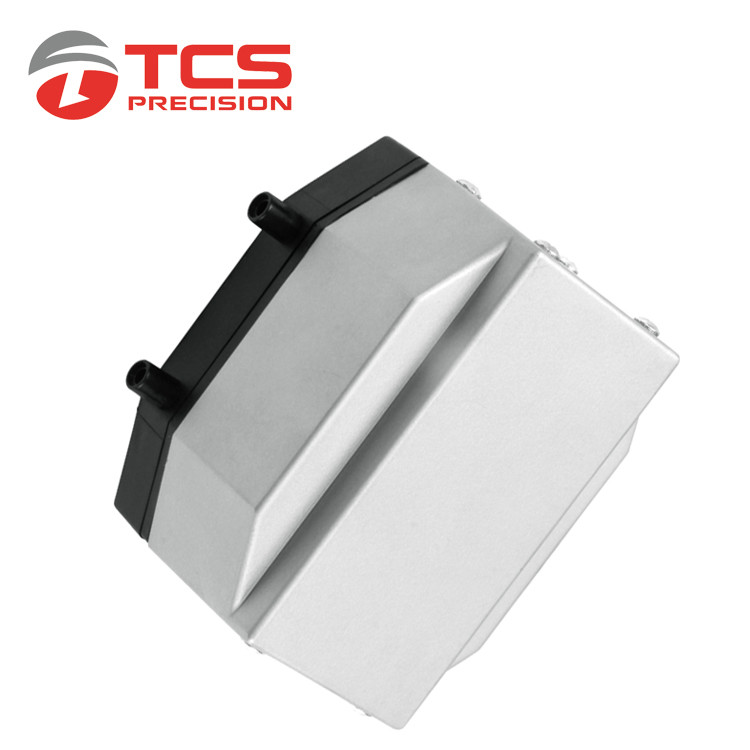

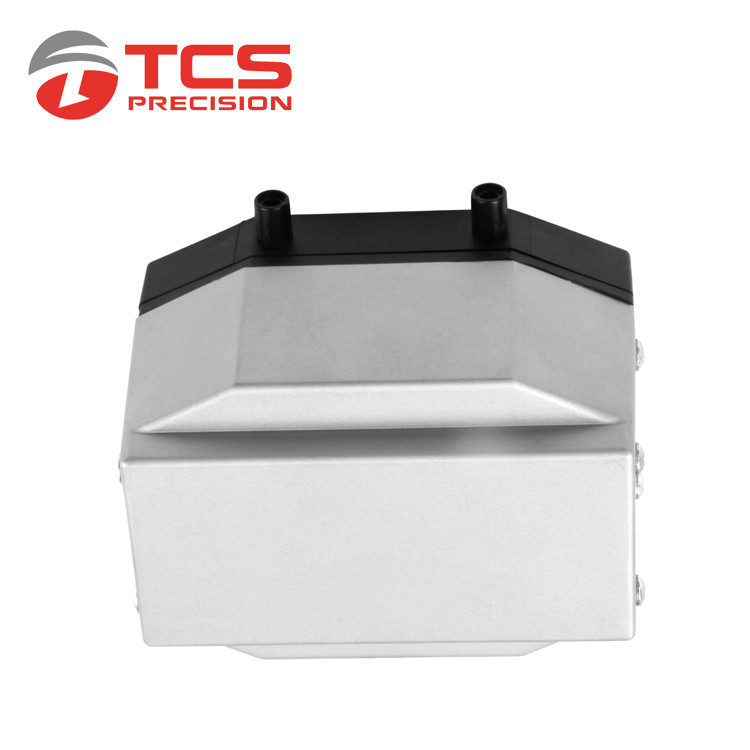

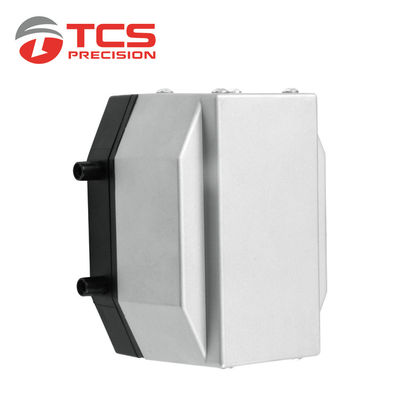

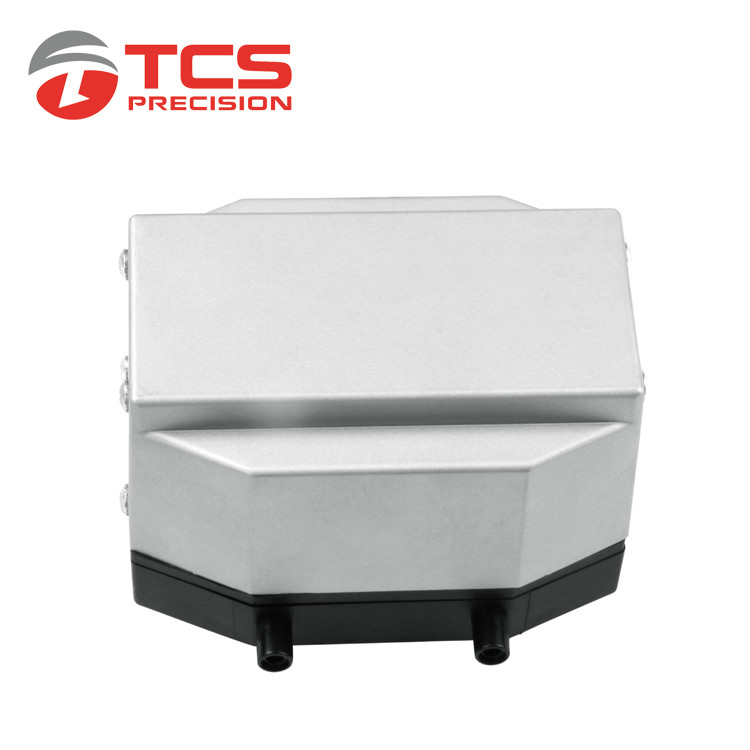

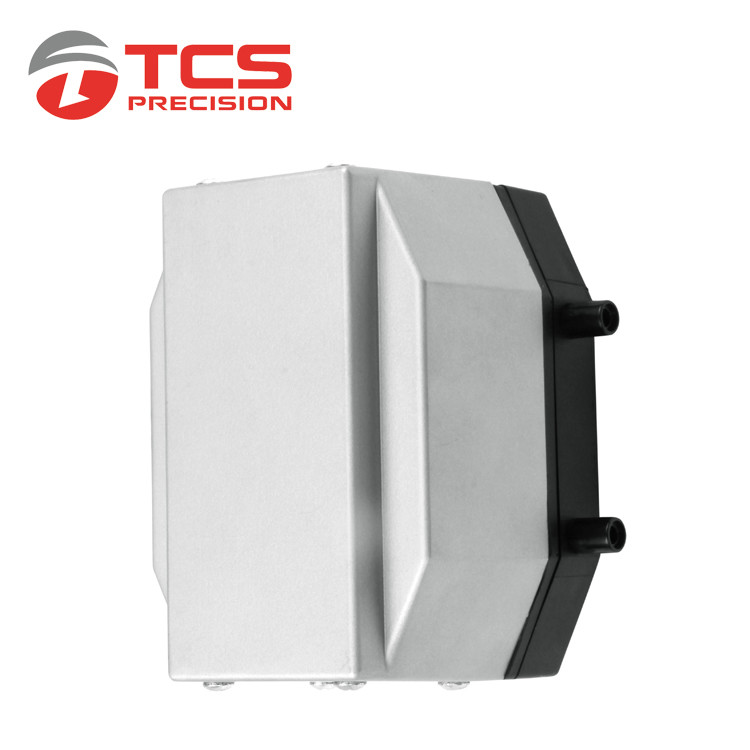

AC 24V - 220V Min Electromagnetic Pump 12LPM 15LPM 17LPM For Smart Mattress

Place of Origin China
Brand Name TCS
Certification ISO9001、ISO14001、ROHS、REACH
Model Number JDB1180 series
Minimum Order Quantity 1000PCS
Price USD 13.5 1000PCS
Packaging Details Carton with foam pad
Delivery Time 20-25 work days
Payment Terms T/T
Supply Ability 100000+pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Voltage AC24V~220V Flow 12~17LPM
Color WHITE Current 1A
Media Air Size 105*85*70mm
Application Massage Chair/Massage Air Bed/Aromatherapy Machine/Beauty Nebulizer Noise <60DB (30 Away)
Standard Or Nonstandard Standard Or Customized
High Light

Min Electromagnetic Pump


12LPM Electromagnetic Pump

Leave a Message
Product Description

AC24V~220V micro air pump  12~17LPM,25~35Kpa, 11W


Quick Detail:

  • The materials are steel.
  • High temperature resistance 0-100℃,75%RH(Depends on the material)
  • AC24V~220V input options
  • REACH, ROHS, ISO9001, ISO14001
  • 1-year warranty



Principle of electromagnetic pump: By passing alternating current to the coil inside the pump body, the magnetic field is generated according to the magnetic effect of the current, and due to the use of alternating current, the direction of the magnetic field of the coil will switch back and forth according to the frequency of the alternating current, and the magnet will be attracted and repelled with the change of the magnetic field of the coil (the magnet can move relative to the coil), therefore, the piston rod installed with the magnet will also move back and forth together, and since the gas chamber is connected to the piston rod installed with the magnet, the movement of the piston rod will generate airflow. As the piston rod is connected to the piston rod with the magnet, the airflow is generated when the piston rod moves and the gas is fed from one nozzle to the other by installing a check valve to the gas chamber.






Electromagnetic pump
Brand name
Model NO.
JDB1180 series
Place of Origin
Massage chair/Massage air bed/Aromatherapy machine/Beauty nebulizer/ect.
Power Source
Air pump
Outlet Size
Consulting service


Life test
Work for 1S, stop for 1S, 200,000 times
0-100℃,75% RH


AC 24V - 220V Min Electromagnetic Pump 12LPM 15LPM 17LPM For Smart Mattress 0








AC 24V - 220V Min Electromagnetic Pump 12LPM 15LPM 17LPM For Smart Mattress 1







Q1. Can I have a sample order for the air pump?

A: Yes, we welcome sample orders to test and check quality.


Q2. What about the lead time?

A: 3-5 days for Sample preparation,20-25working days for mass production.


Q3. Do you have any MOQ limit for air pump orders?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.


Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx, or TNT. It takes 3-5 days to arrive. Airline and sea shipping are also optional.


Q5. How to proceed with an order for an air pump?

A: Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places a deposit for formal order.

Fourthly We arrange the production.


Q6. What are the terms of trade?



Q7: Do you offer a guarantee for the products?

A: Yes, we offer 1 years warranty on our products.


Q8: How to deal with the faulty?

A: Firstly, Our products are produced in a strict quality control system and the defective rate will be less than 0.2%.


Secondly, during the guarantee period, we will send a new air pump with new order for a small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the real situation.
