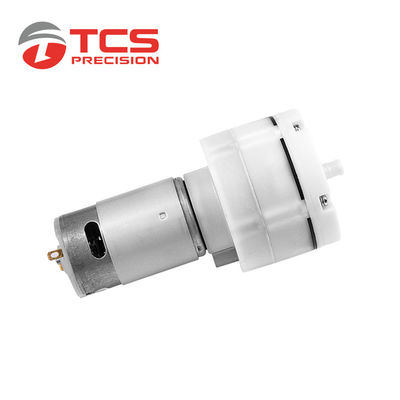

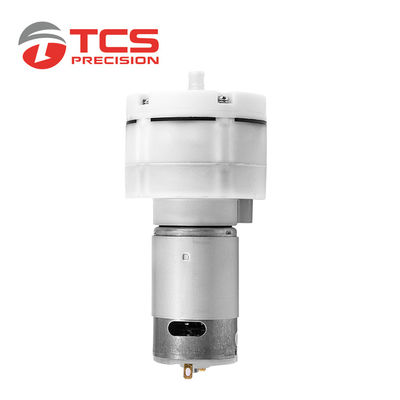

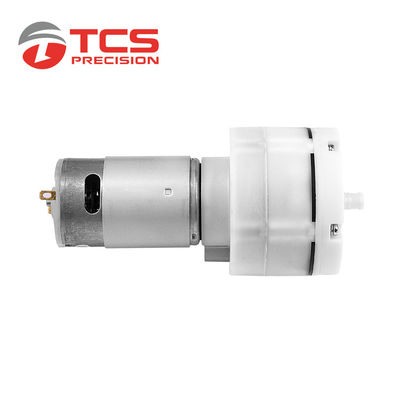

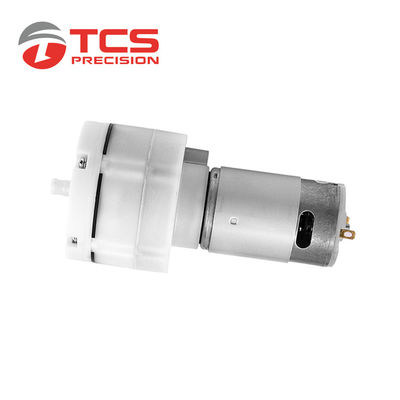

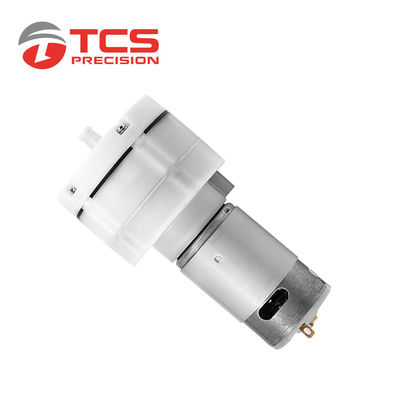

8LPM 10LPM 14LPM Micro Vacuum Pump Diaphragm DC 12V / 24V For Inflatable Bed

DC 12V,24V micro vacuum air pump 8~14LPM 60~90Kpa

Quick Detail:

• The materials are steel and plastic
• High temperature resistance 0-100℃
• DC12V-24V input options
• REACH,ROHS,ISO9001,ISO14001
• 1 year warranty

 Description:

Micro vacuum pump refers to a small vacuum pump, only one suction nozzle and one exhaust nozzle, can continuously form a vacuum or negative pressure at the entrance. Working medium is mainly gas, is a small instrument. The basic principle is that the circular motion of the motor through a mechanical device causes the diaphragm inside the pump to move back and forth, thus compressing and stretching the air in the pump chamber with a fixed volume, forming a vacuum (negative pressure). Under the action of the pressure difference, air is pushed into (sucked in) the pump chamber and then discharged through the exhaust port.

Specifications:

Applications:

FAQ:

Q1. Can I have a sample order for micro vacuum air pump?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: 3-5 days for Sample preparing ,20-25working days for mass production.

Q3. Do you have any MOQ limit for micro vacuum air pump order?

A: Yes,1000pcs MOQ, 1-10pcs for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for micro vacuum air pump?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6. What are the terms of trade?

A: FOB, EXW

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new air pump with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
